4-1000A TUBE AMPLIFIER
BY
W4NFR
Built
10-30-1979
One
of my favorite Amplifier projects
was the 4-1000A and Power Supply. I have many photos of it now, thanks
to Ko4oo

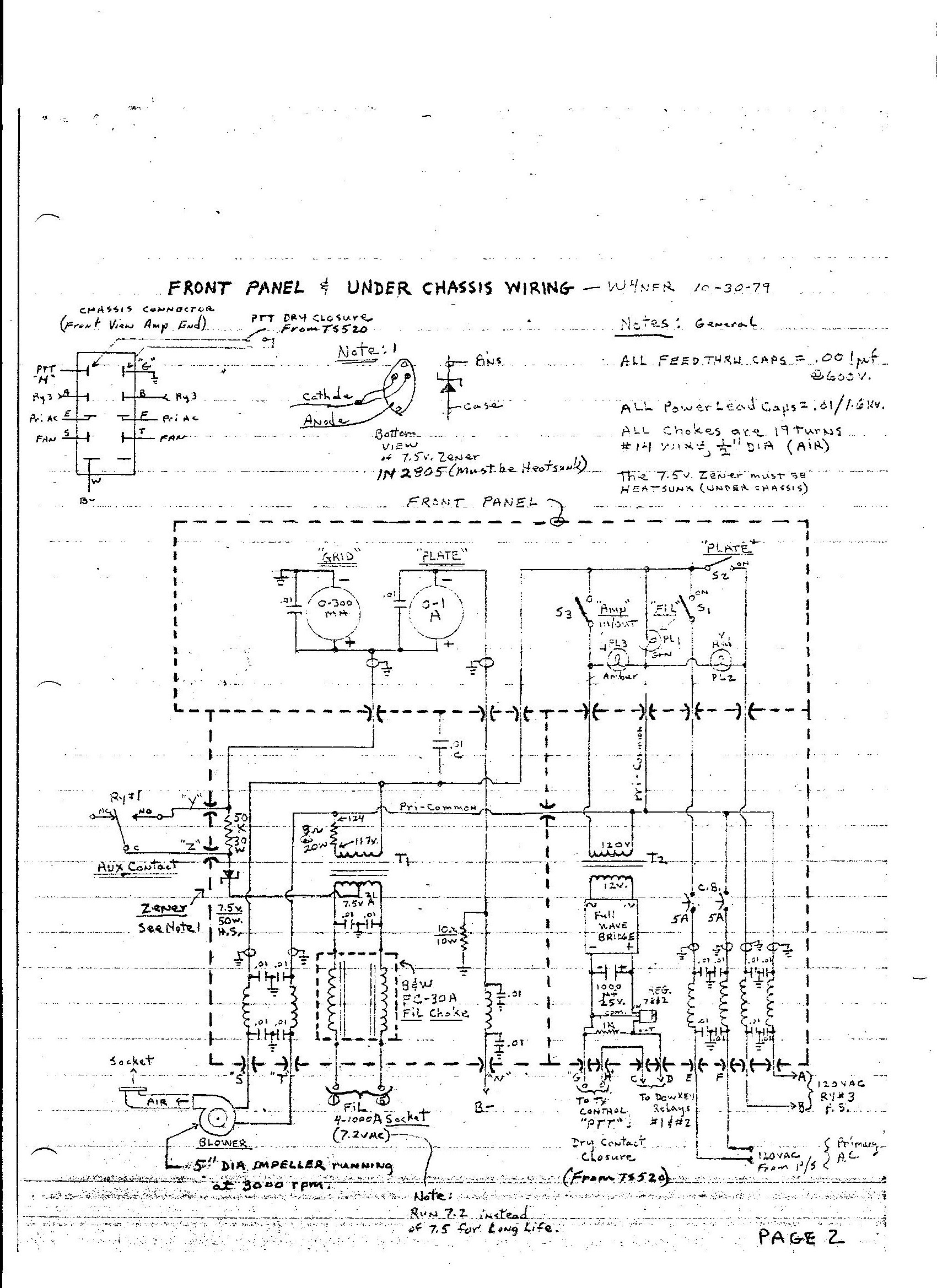

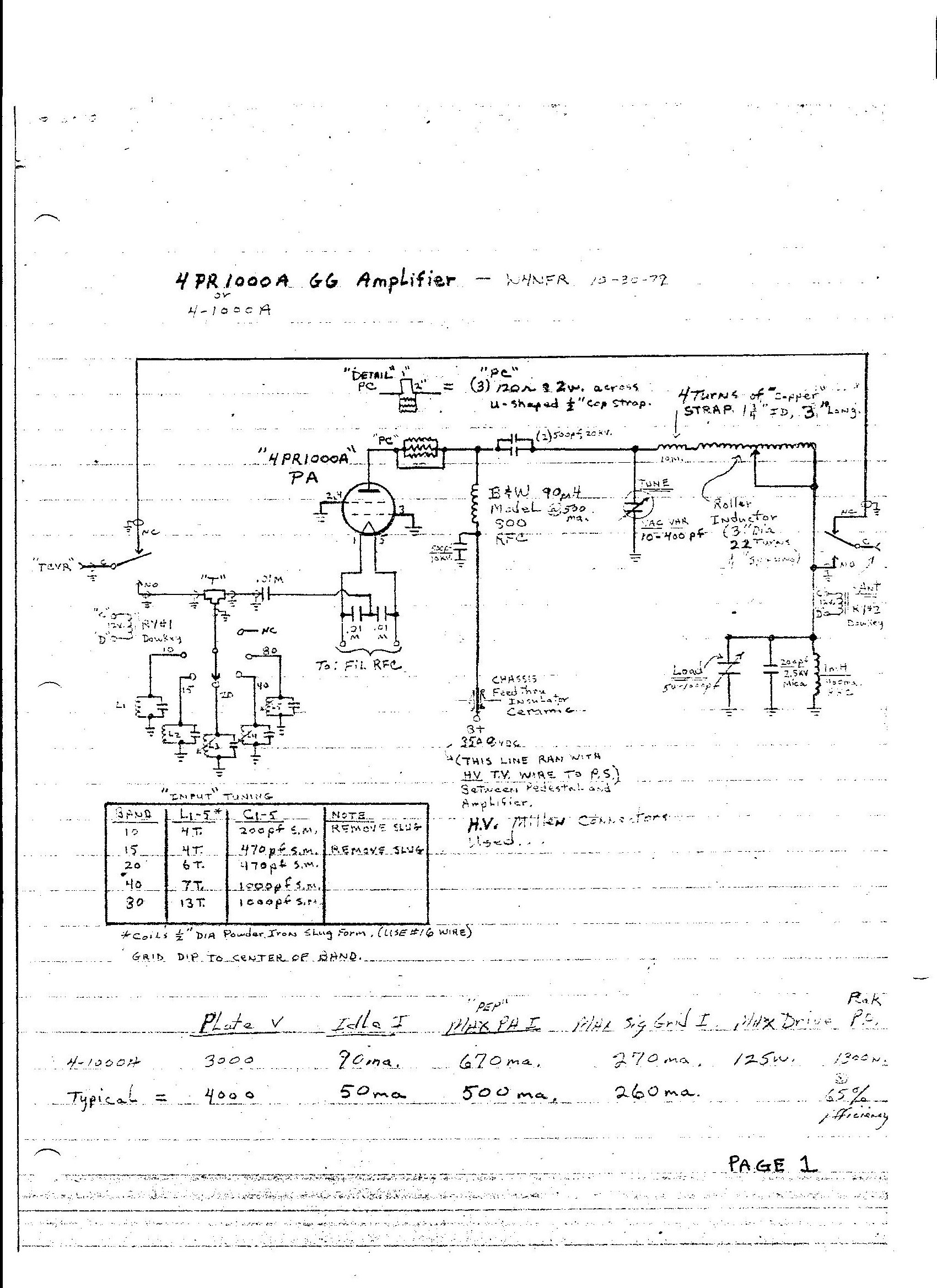

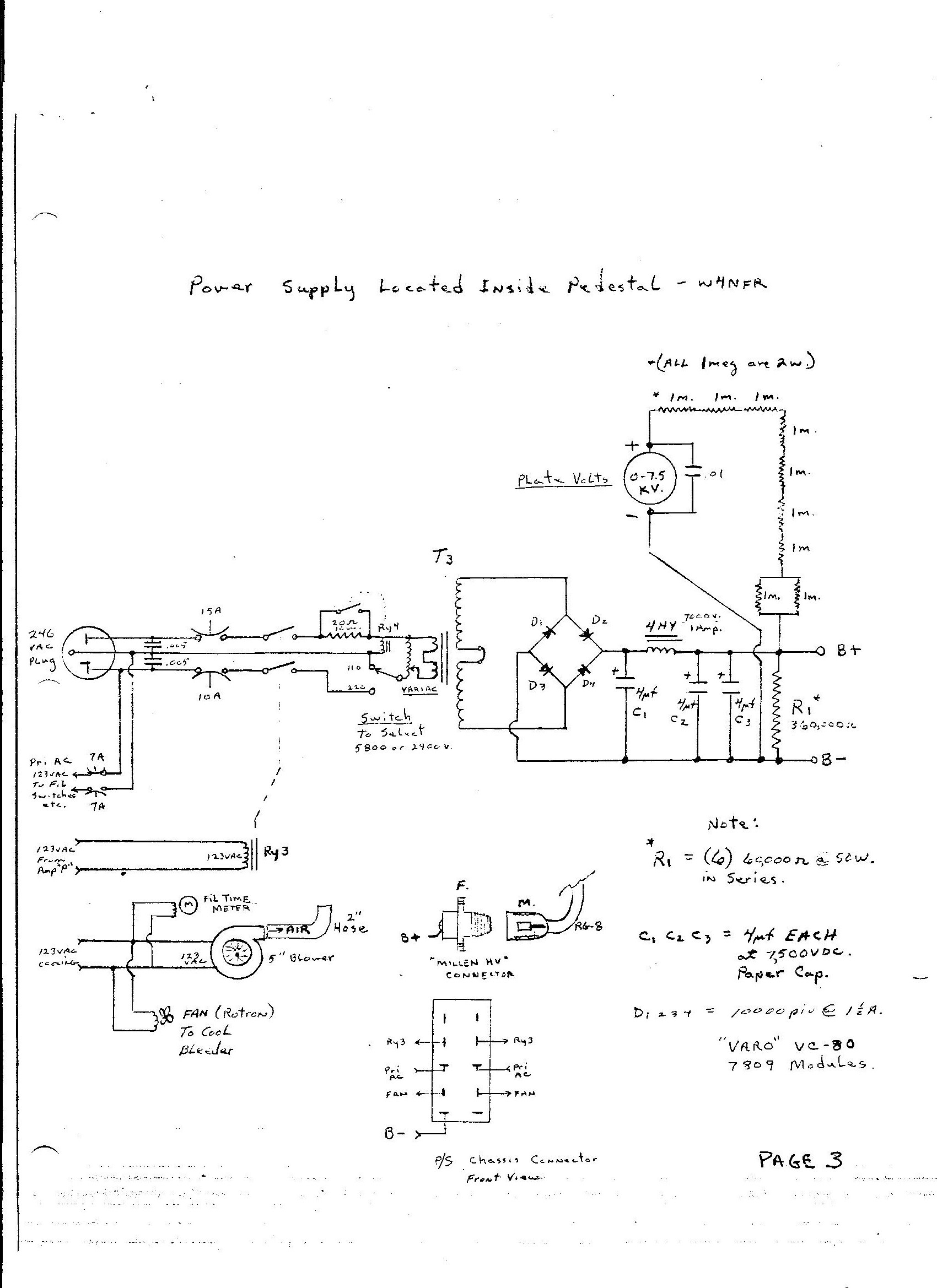

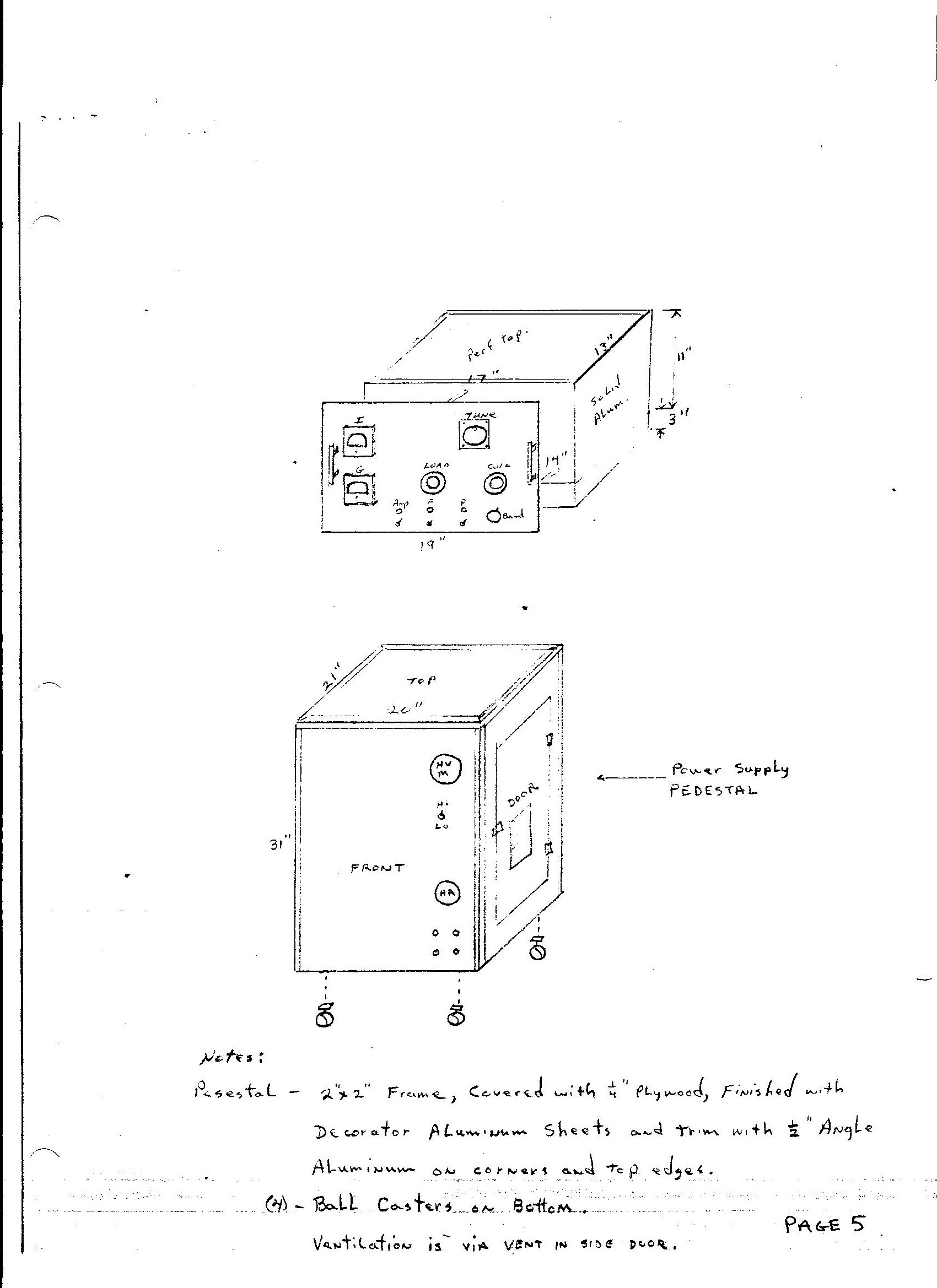

The hand drawn schematics are straight forward and basic.
Enjoy.
73s
Bill

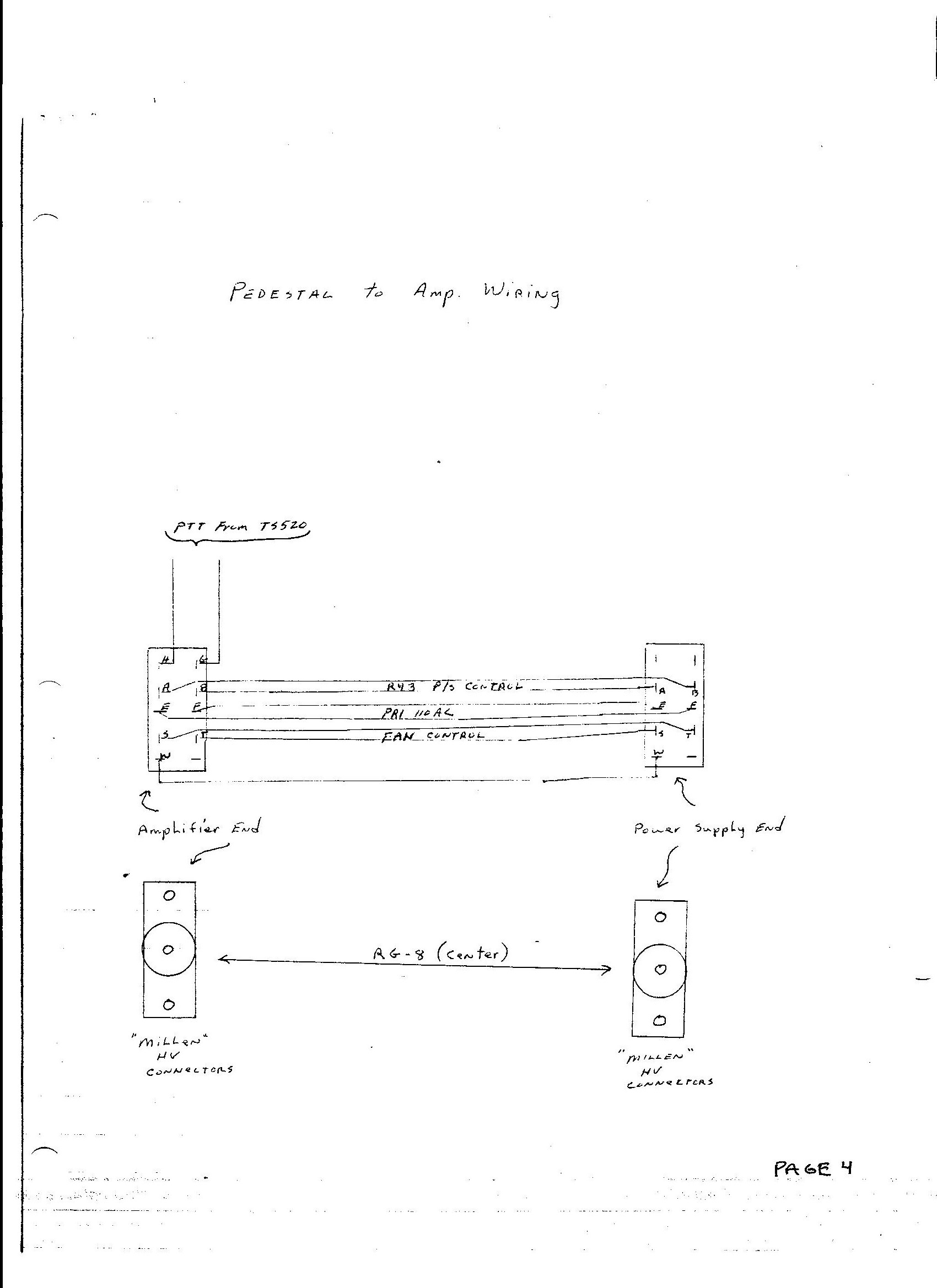

The hand drawn schematics are straight forward and basic.
Enjoy.
73s
Bill
HOME BUILT BY BILL W4NFR

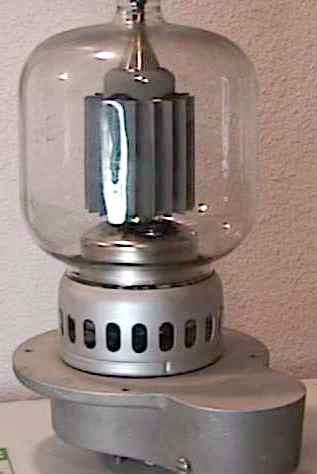

4-1000A CLOSE UP WITH SOCKET
Magnificent Tube !
Magnificent Tube !

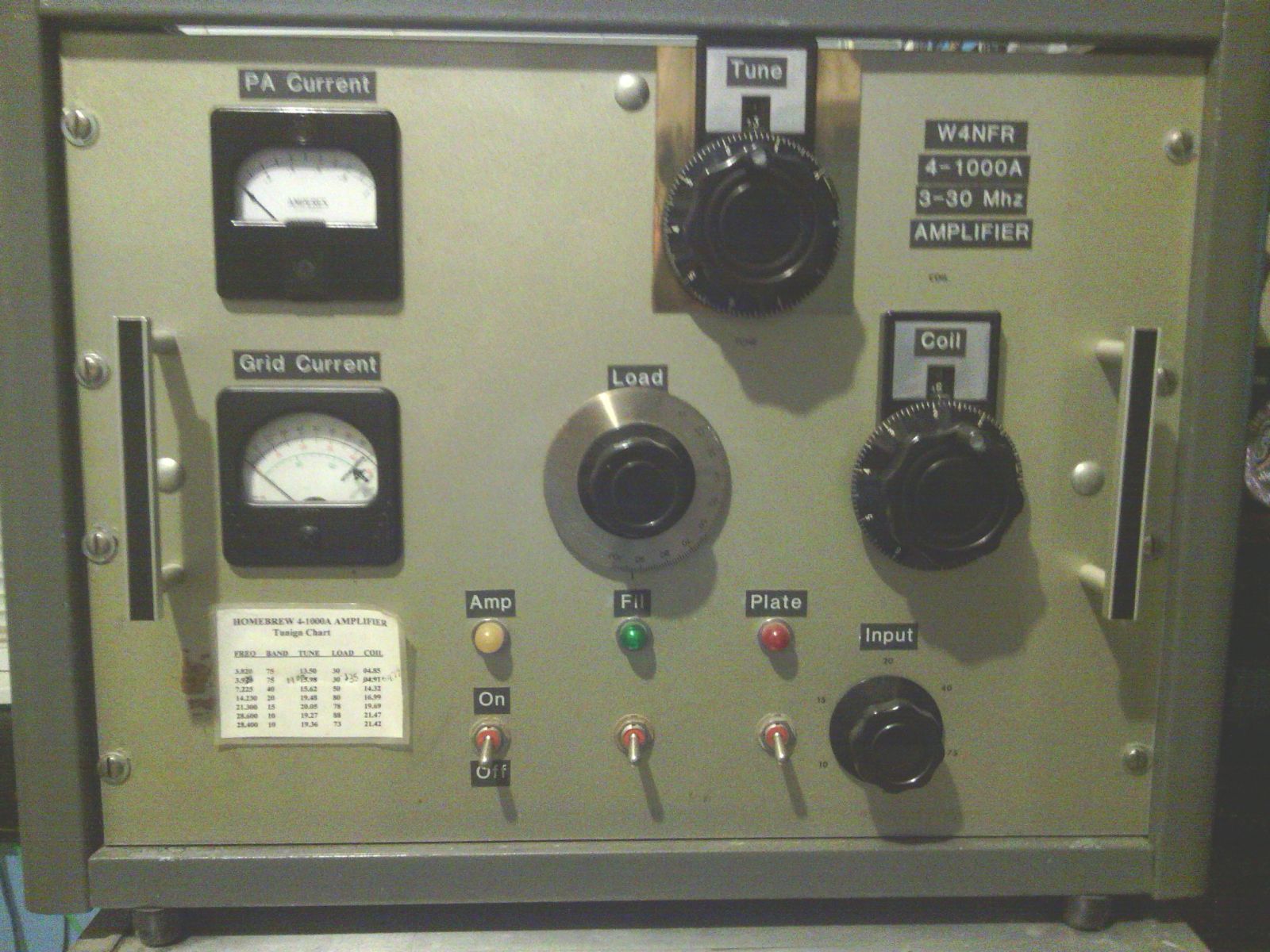

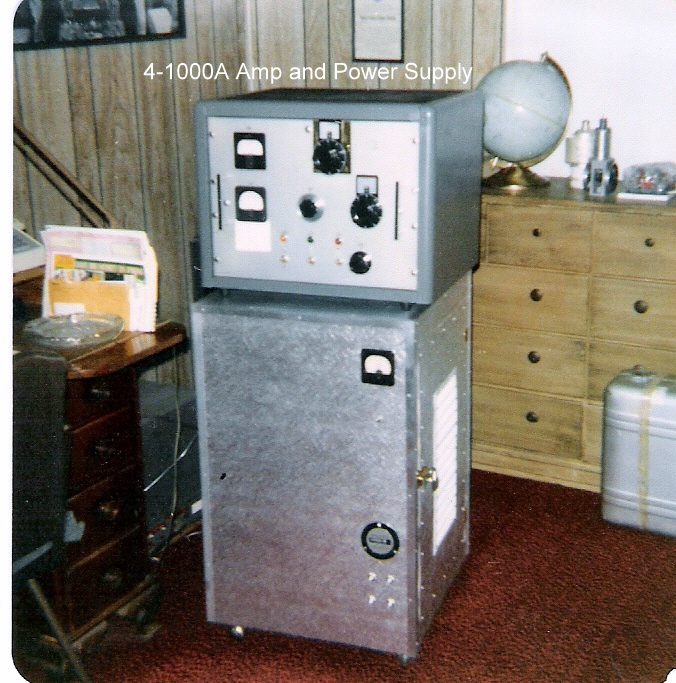

Front Panel

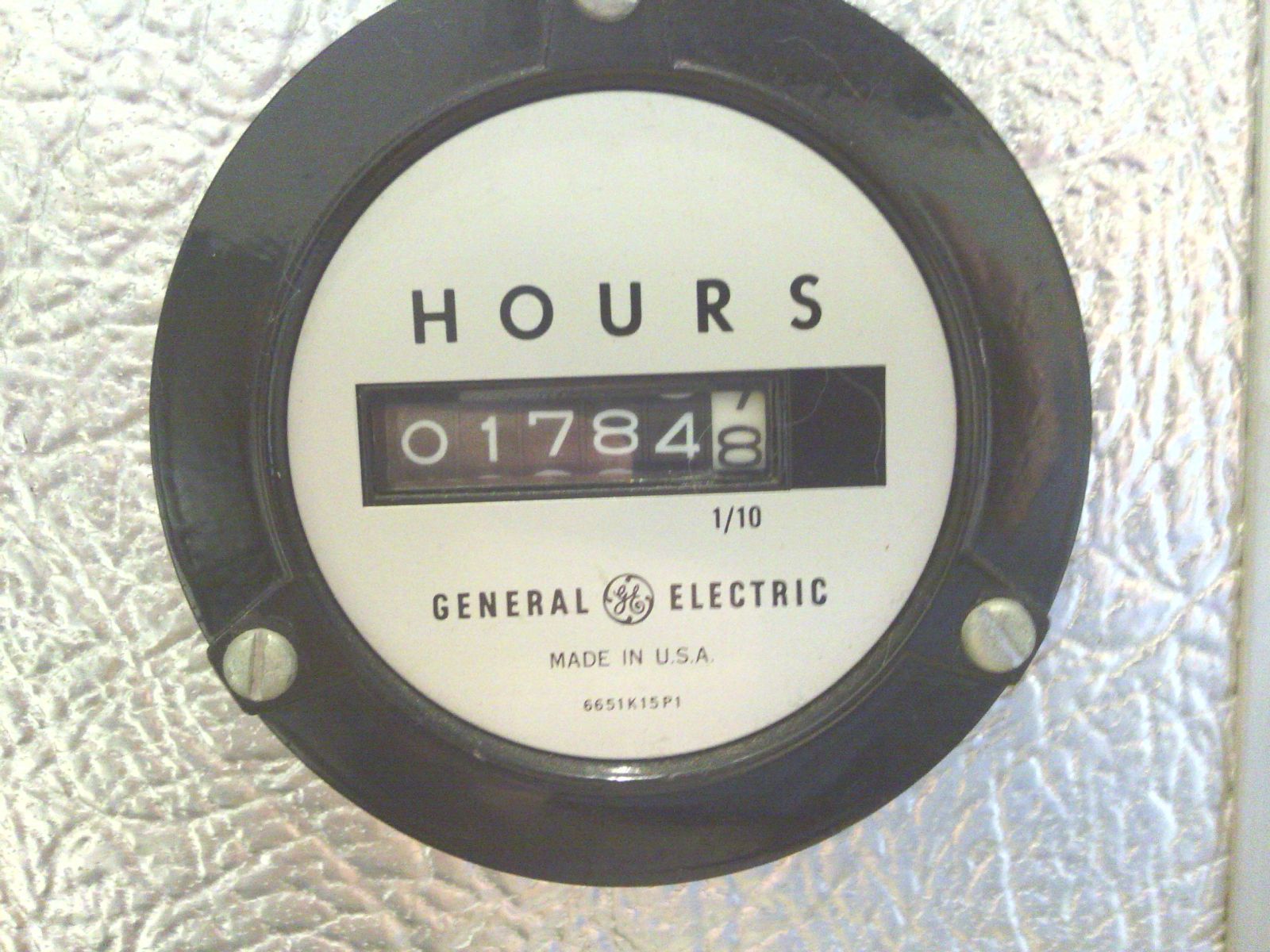

Hours Meter

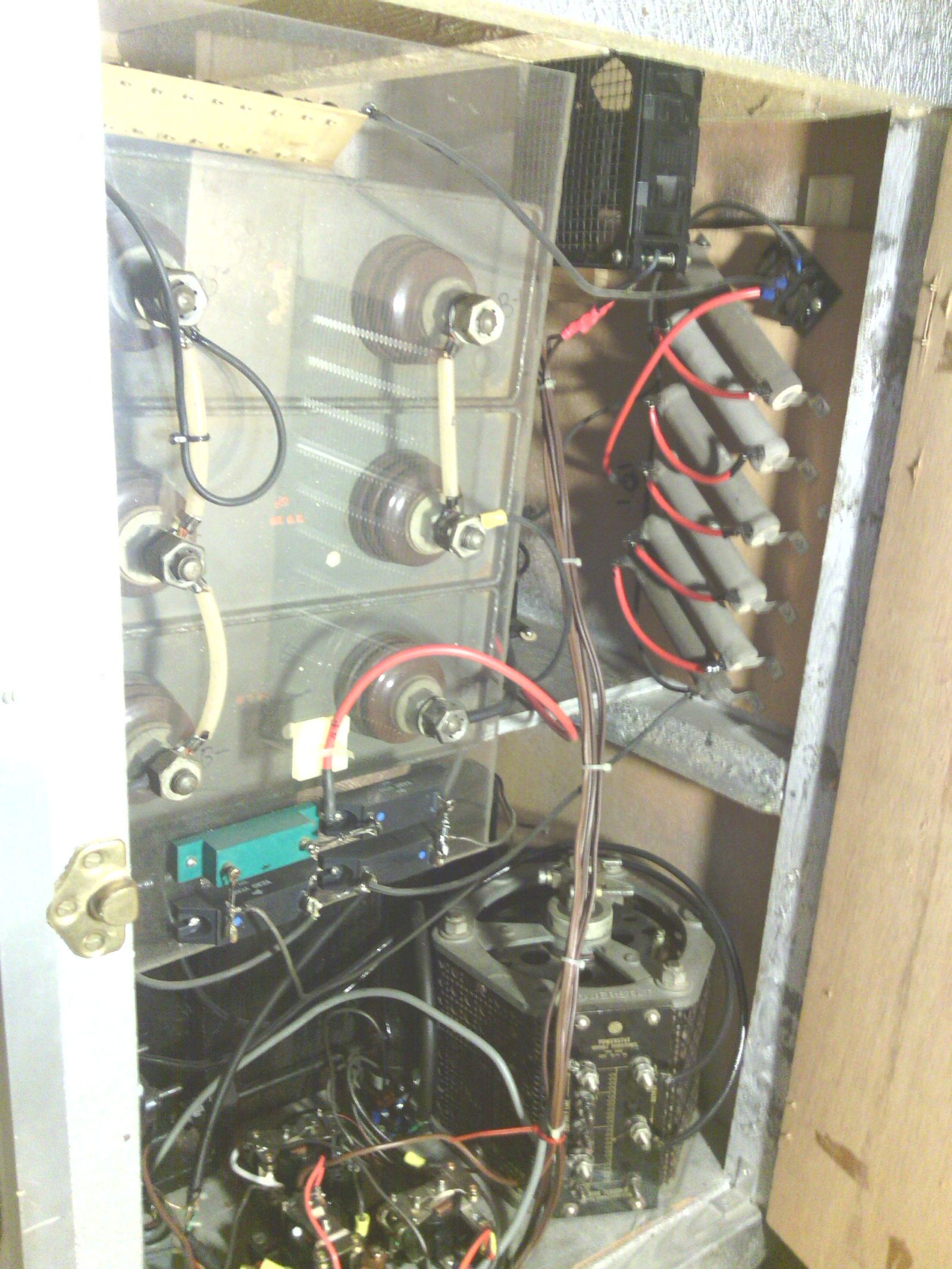

HV POWER SUPPLY

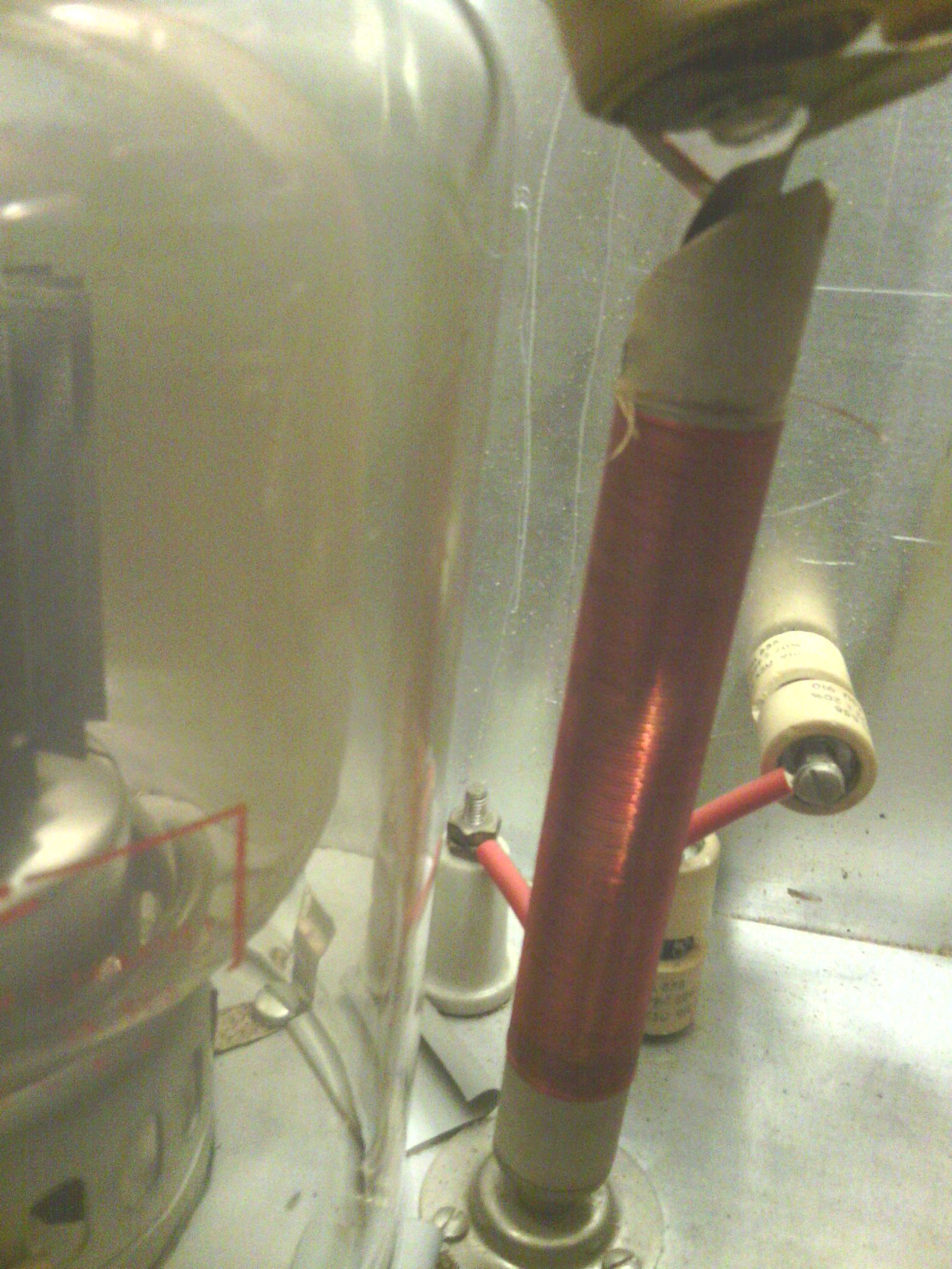

B & W 800 RF PLATE CHOKE

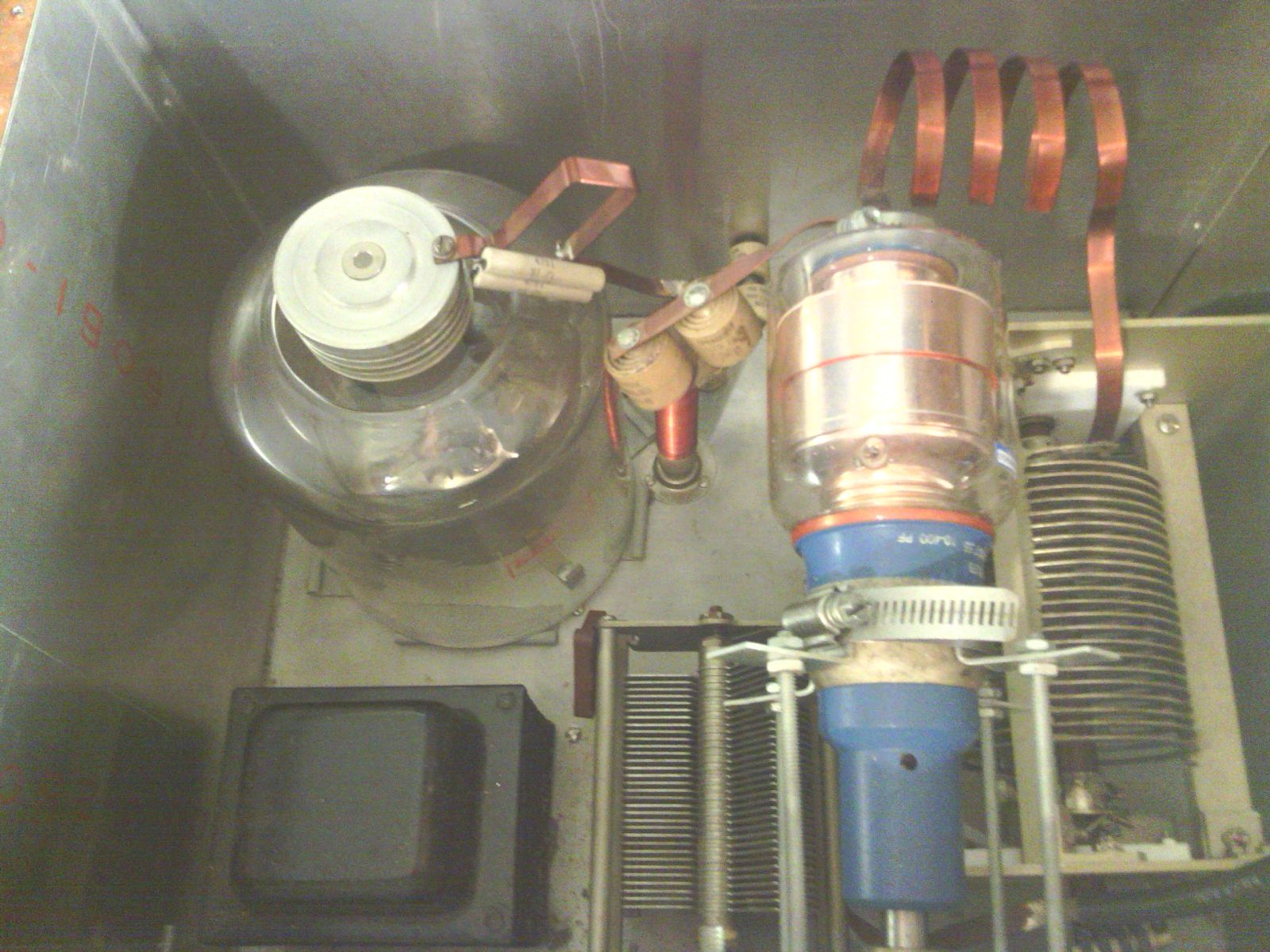

TOP VIEW RF DECK

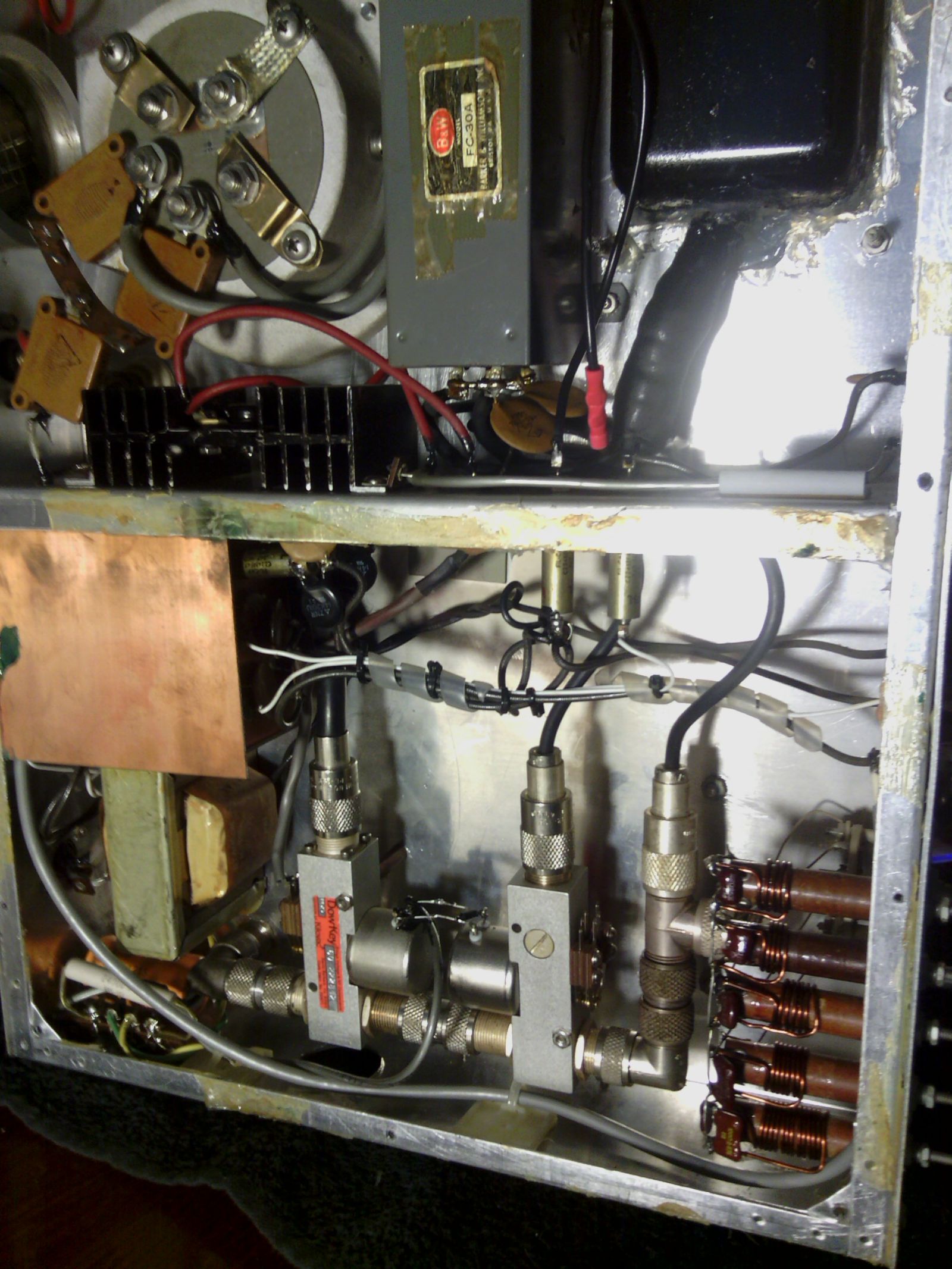

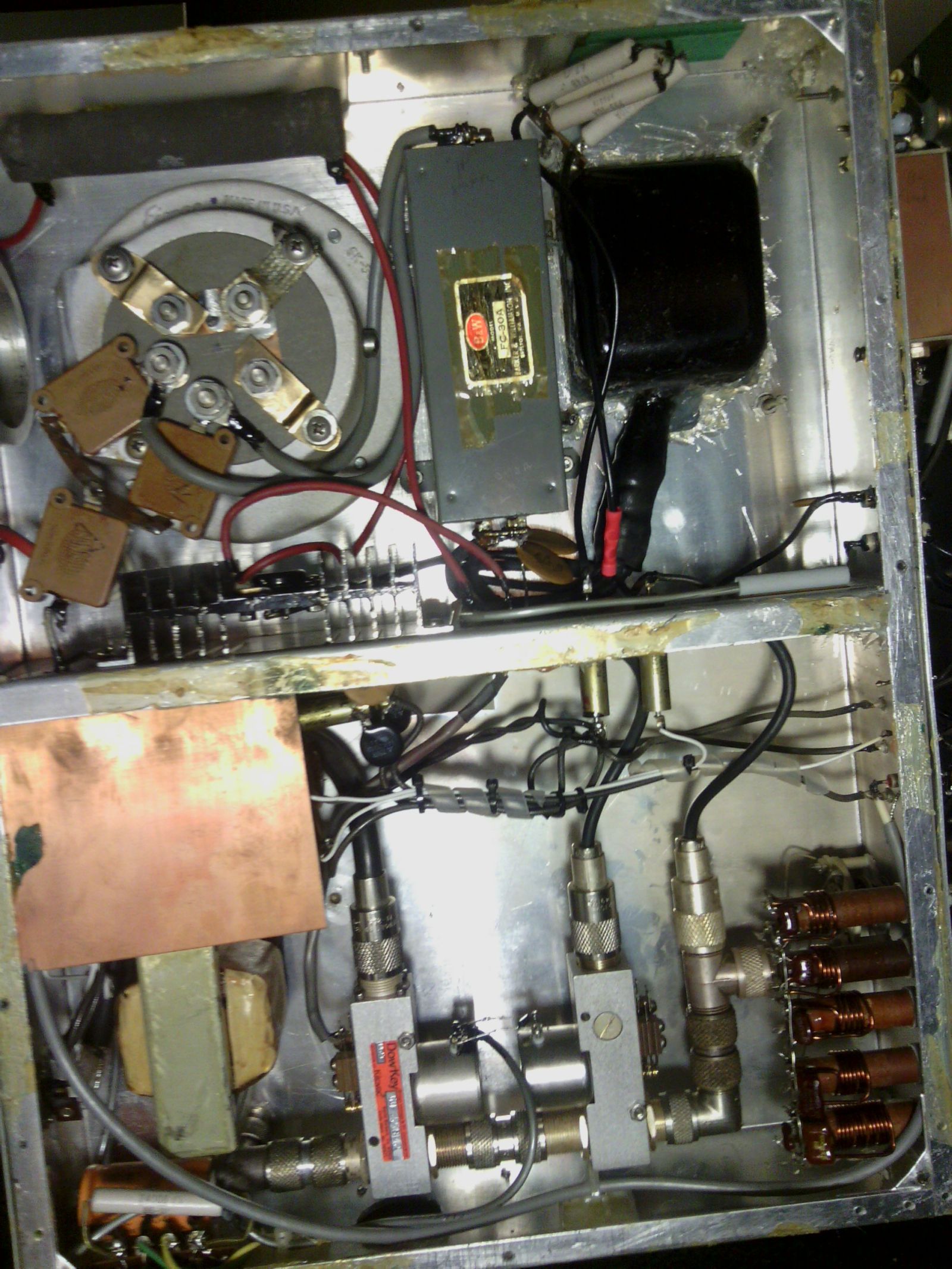

UNDERSIDE OF RF DECK (RELAYS)

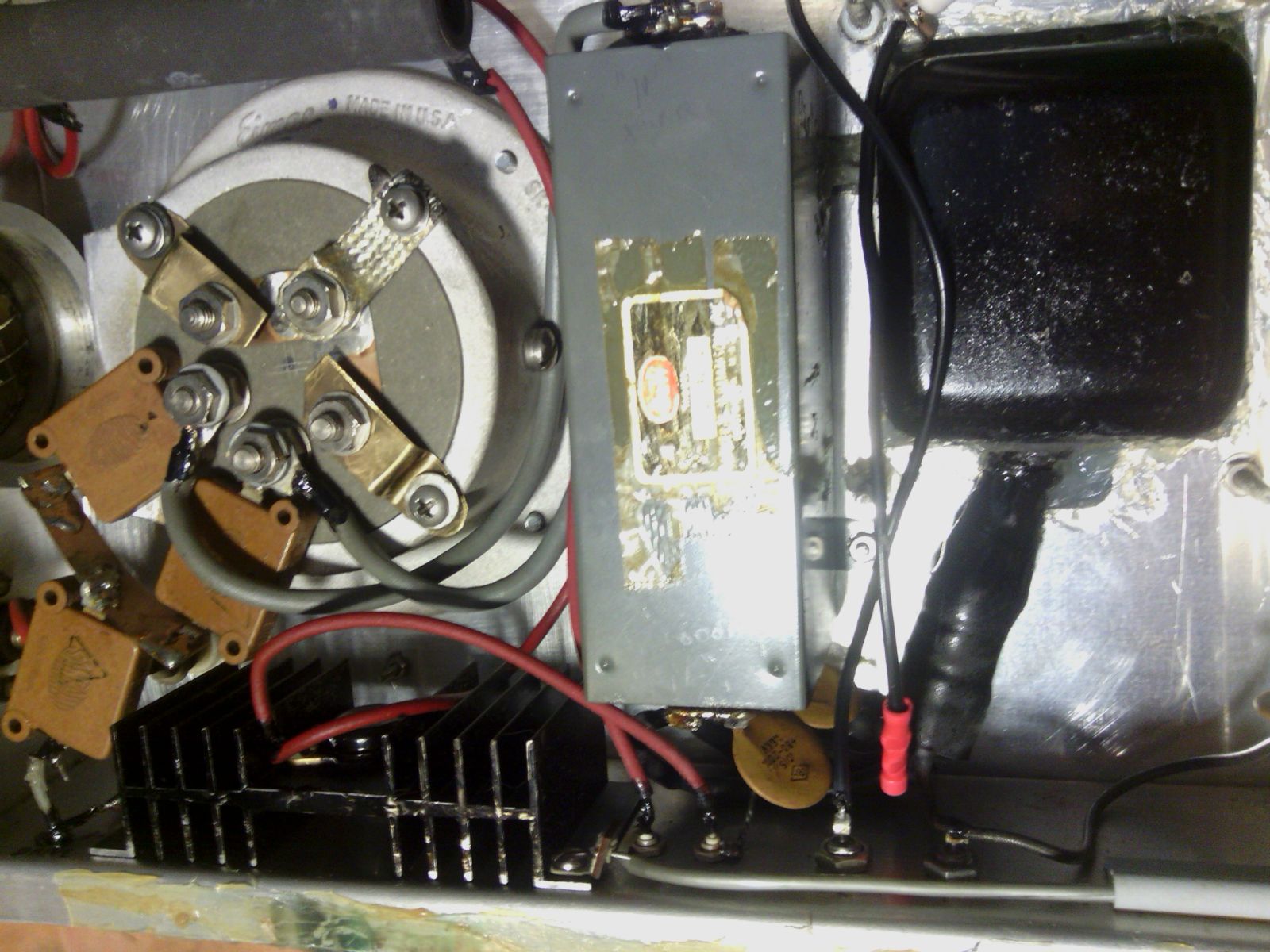

SOCKET AND FILAMENT CHOKE
RELAYS, TUNED INPUT
