BY
W4NFR
7-4-16

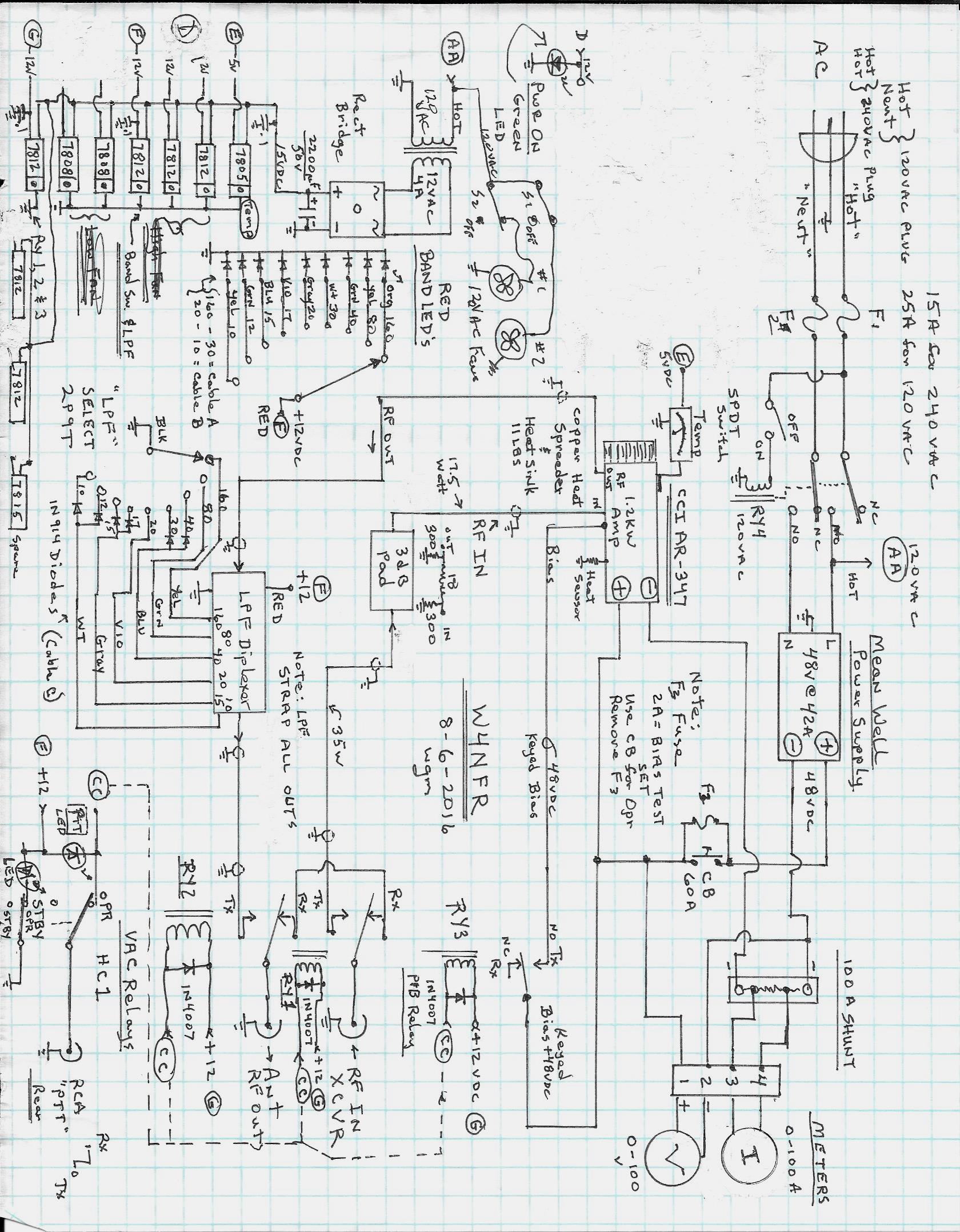

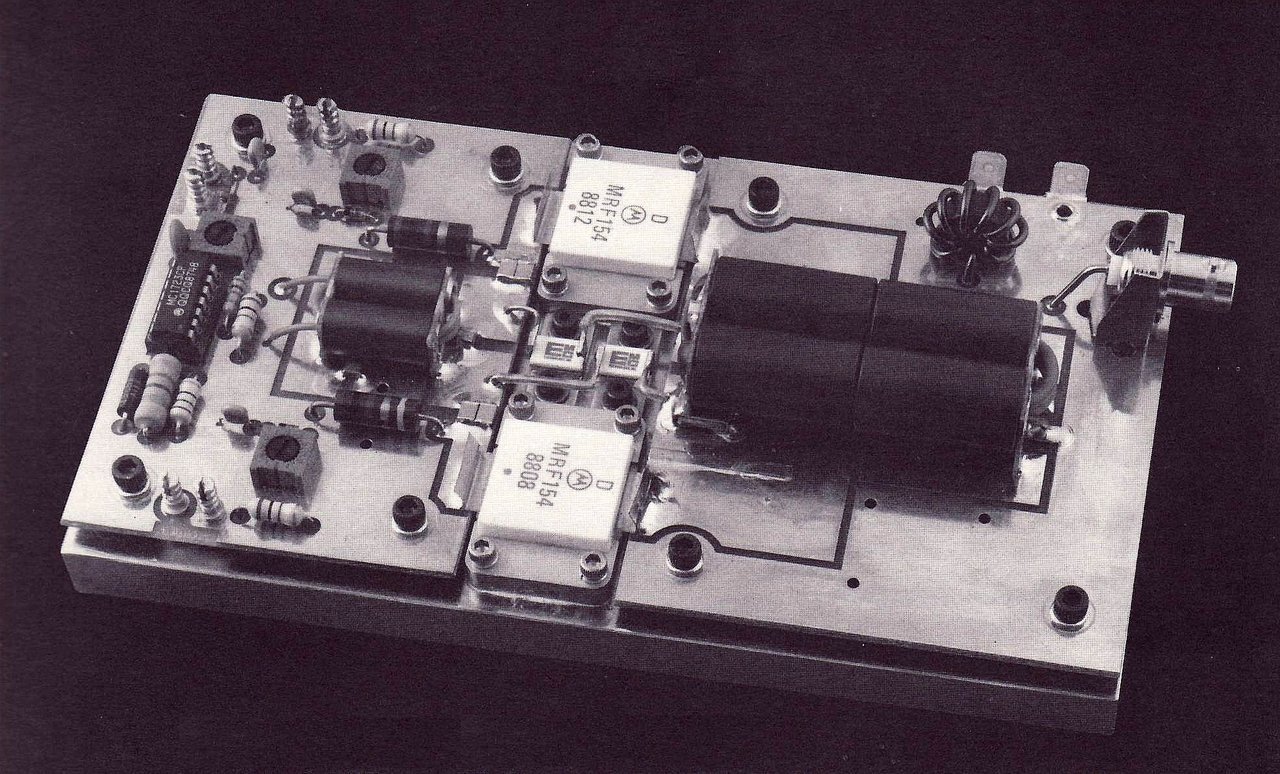

THIS PROJECT IS COMPLETED. THE AMPLIFIER IS BASED ON THE COMMUNICATIONS CONCEPT INC (CCI) KIT AR-347

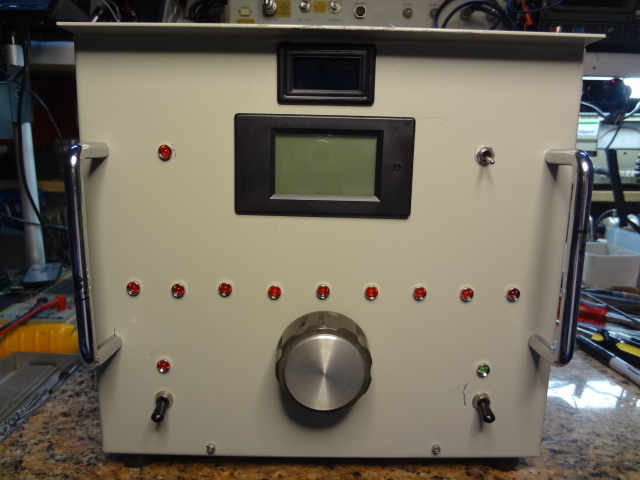

SWITCHES, INDICATORS AND DISPLAY ON FRONT PANEL

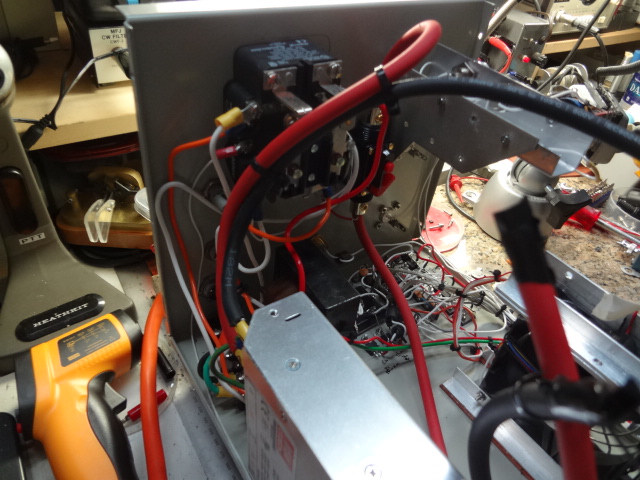

INSIDE REAR PANEL

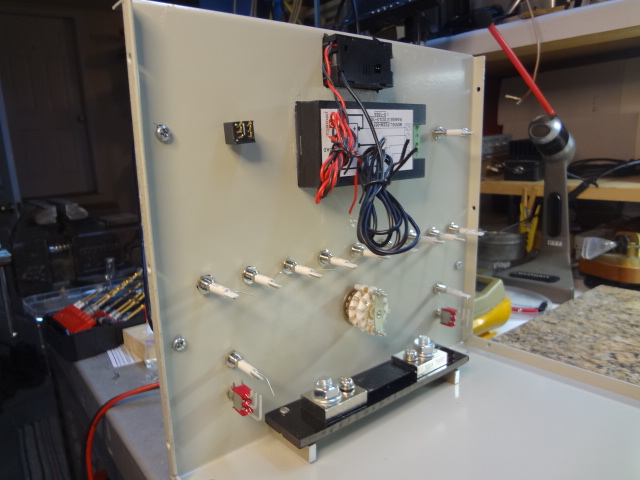

INSIDE FRONT PANEL

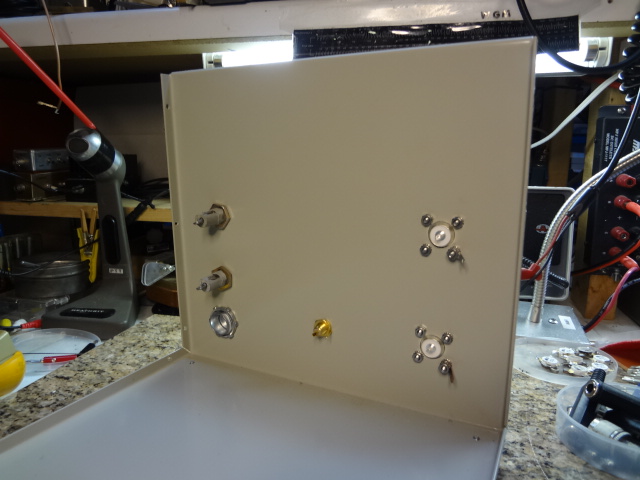

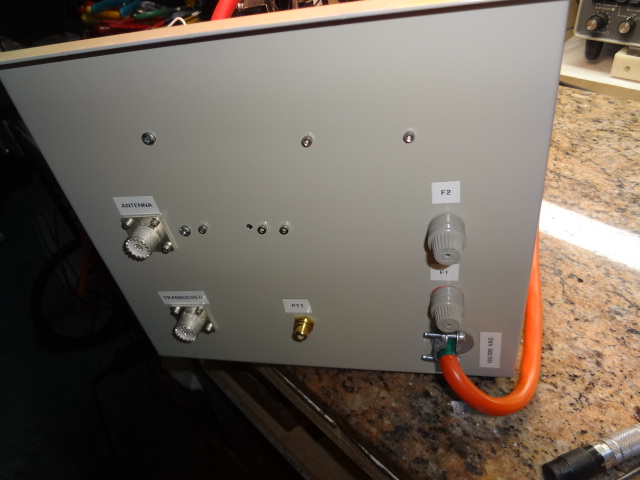

REAR PANEL

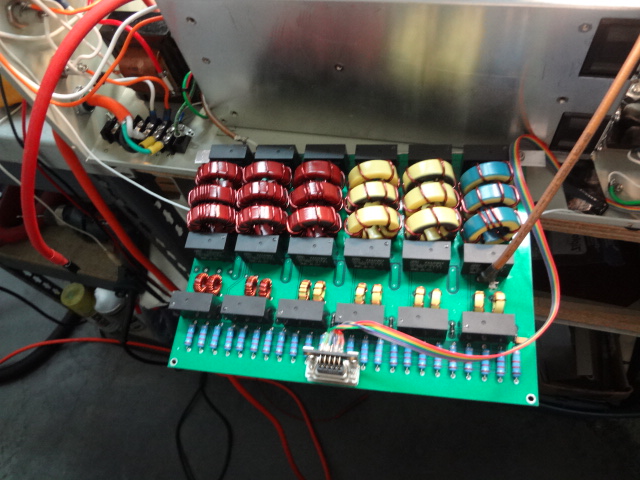

LOW PASS FILTER DIPLEXER

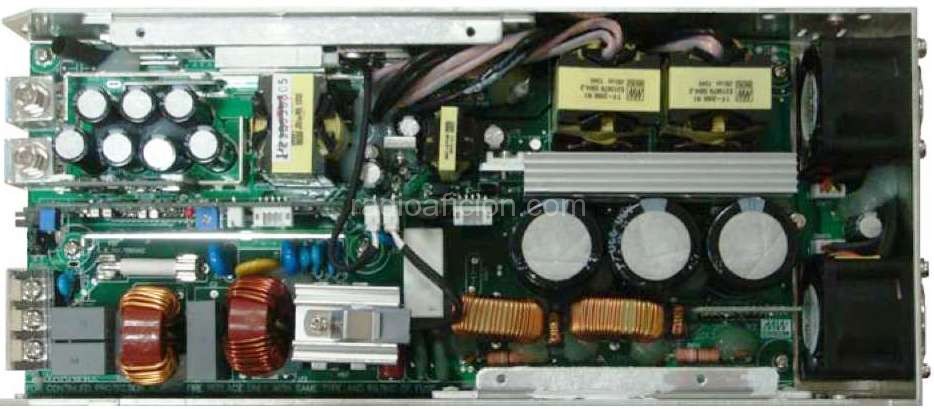

MEAN WELL POWER SUPPLY 48 VDC @ 42 AMPS
(COVER REMOVED)
MODULES STACKED INSIDE CASE
LPF, POWER SUPPLY, FANS AND HEATSINK & AMPLIFIER
http://www.moneysmith.com/W4NFR/STONECREEK1200/DSC03587.JPG

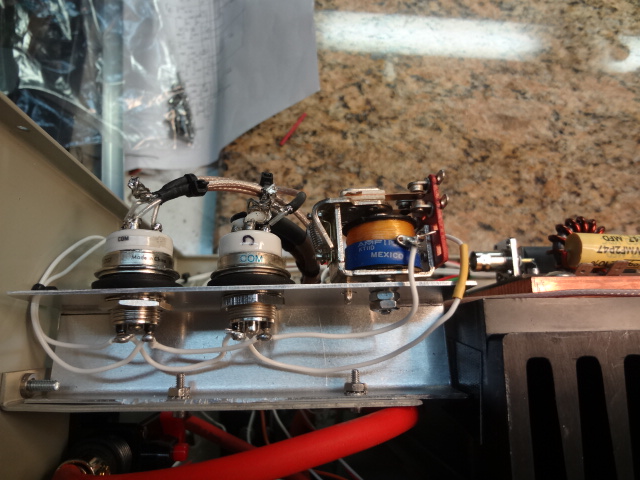

VACUUM RELAYS AND BIAS RELAY

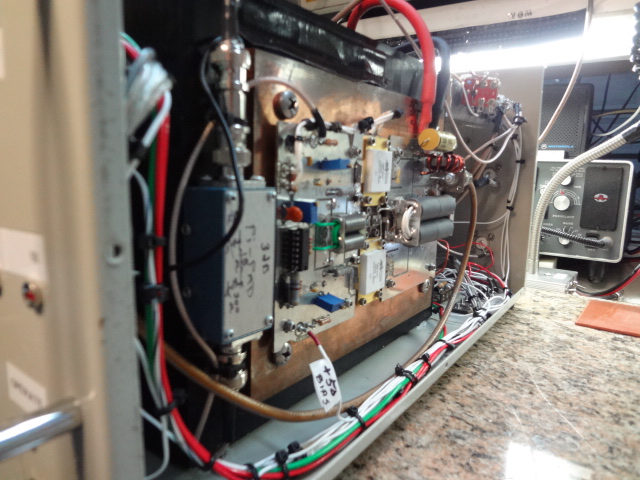

SIDE VIEW OF AMPLIFIER ON COPPER SPREADER AND HS
COOLING FAN ASSEMBLY (2) 4" 100 CFM 120 VAC FANS)

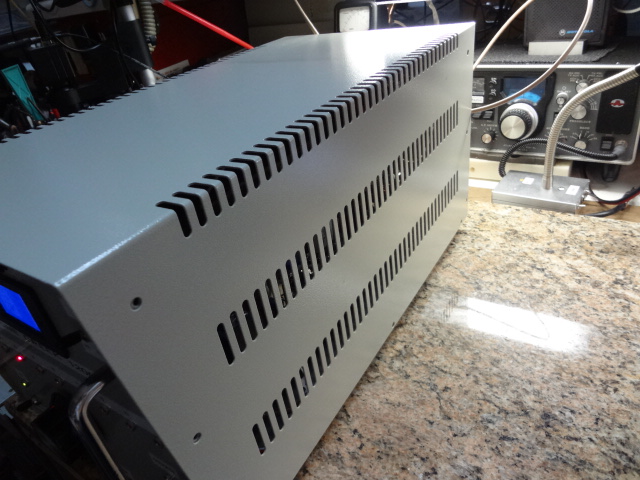

SIDE VIEW OF CASE

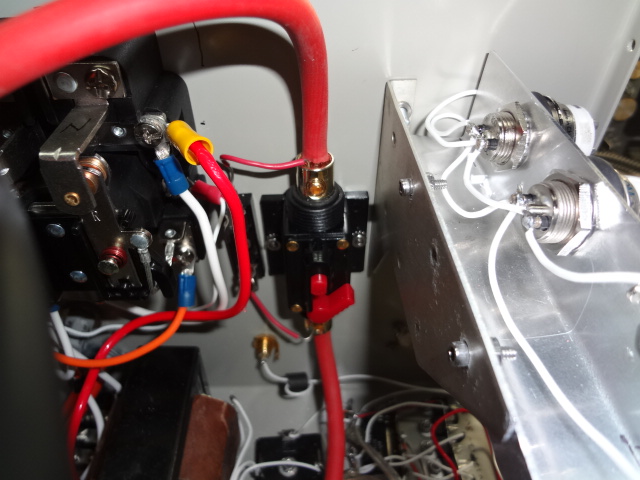

MASTER POWER ON/OFF RELAY
60 AMP CIRCUIT BREAKER

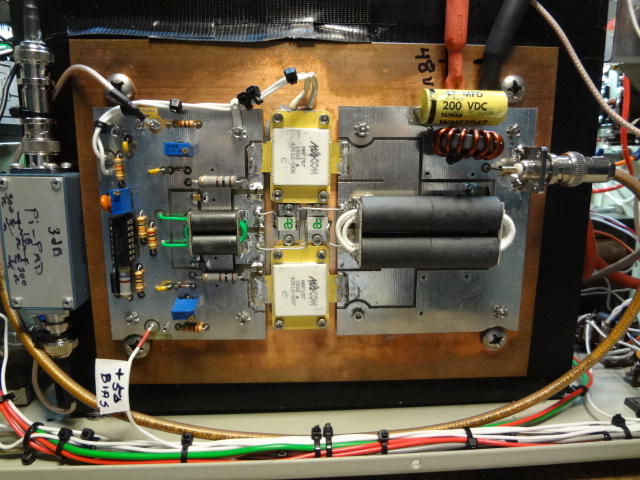

CLOSE UP OF THE MRF-157's AMPLIFIER SHOWING THE COMPONENTS
TRANSFORMERS, BIAS REGULATOR ETC.

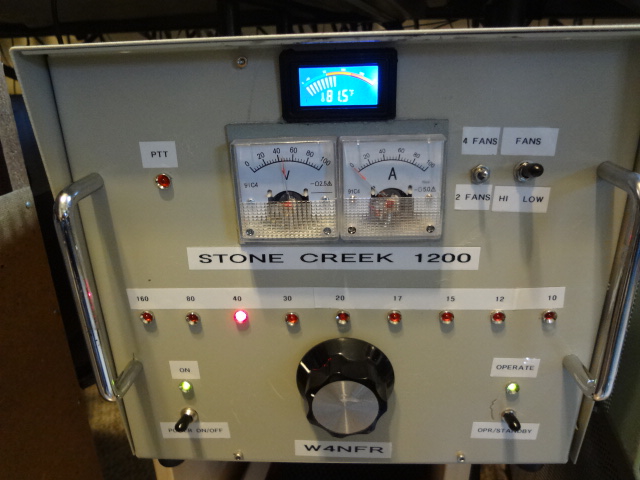

FINISHED FRONT VIEW
CHANGED OUT TO ANALOG METERS

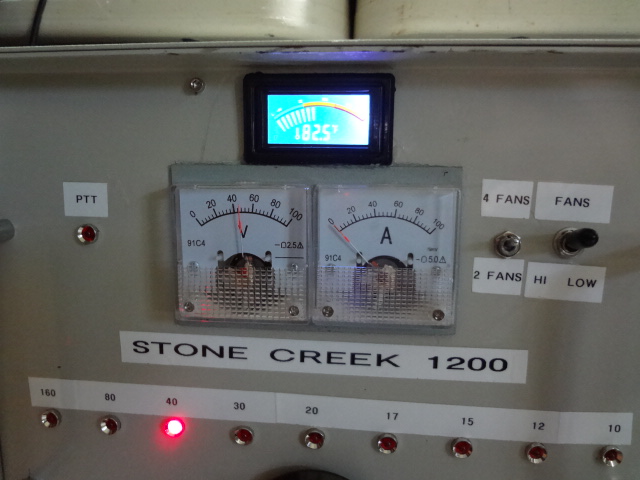

FINISHED FRONT VIEW
NEW METERS AND FAN SWITCH

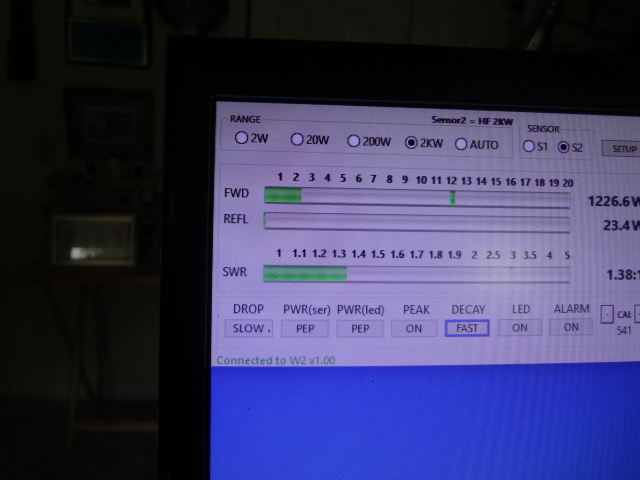

HERE IS THE FINISHED POWER OUT
END
