GS-35B Tube Amplifier
By
W4NFR

This "Home Brewed" Amplifier uses a single Russian GS-35B Power Tube  and  has an output power of 1.5 KW.
It covers 160 through 10 Meters.
It is built to last and provide many years of reliable service.

Start...................

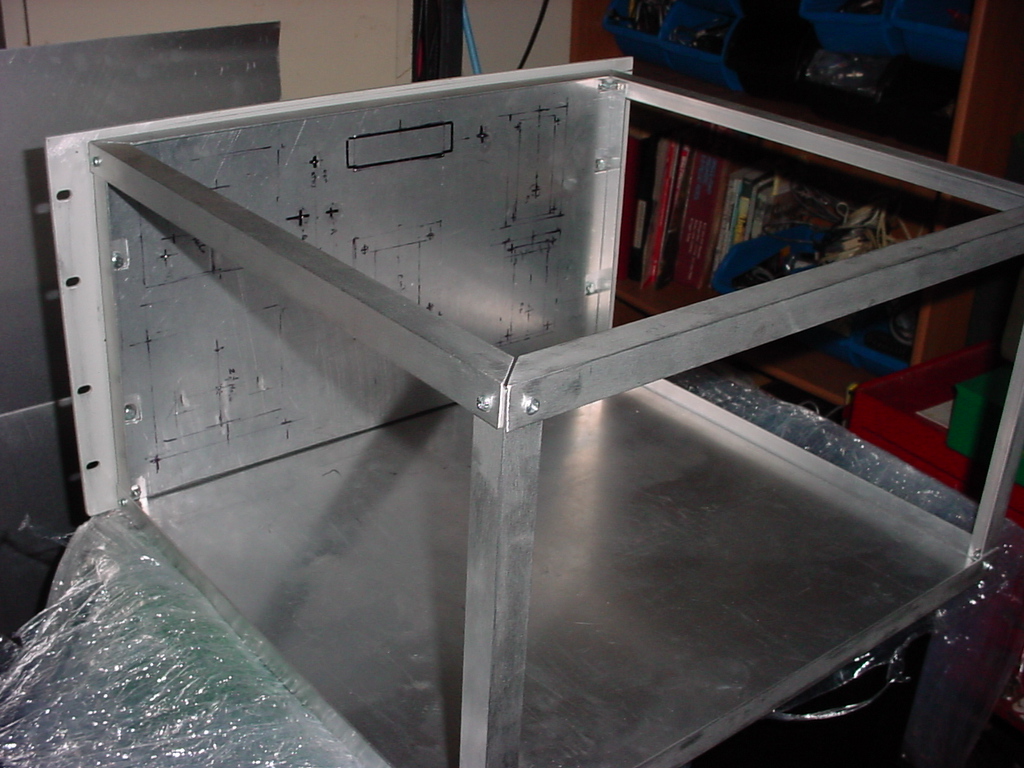

Amplifier Chassis Frame

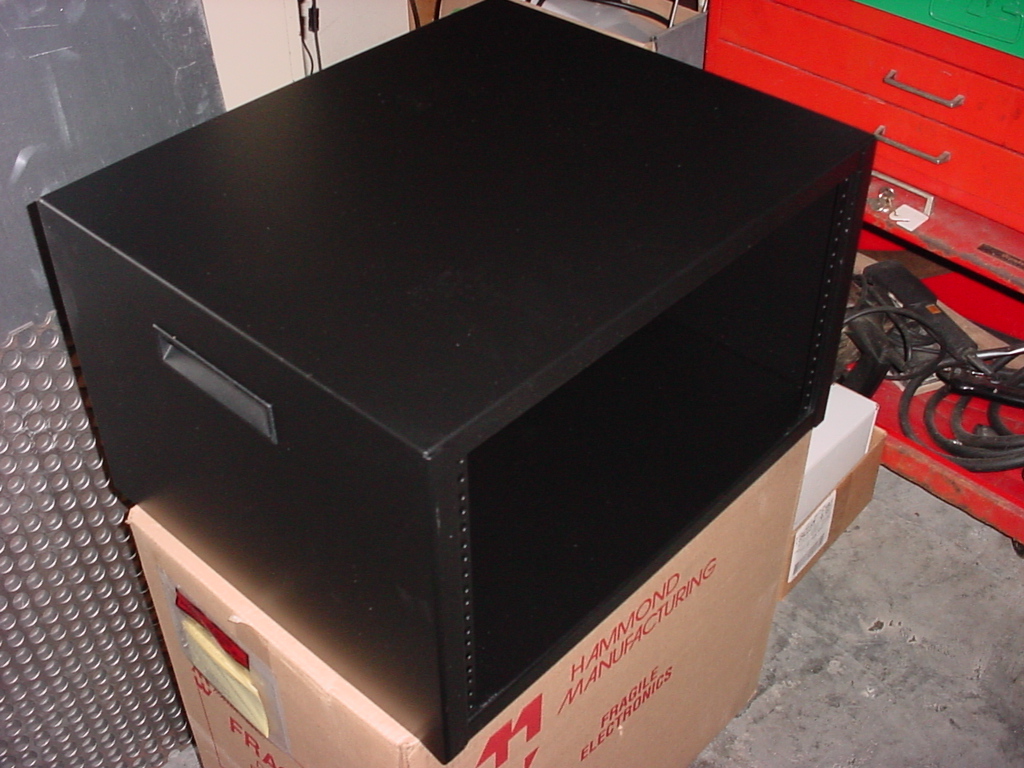

 Empty Cabinet From Fair Radio, Lima Ohio

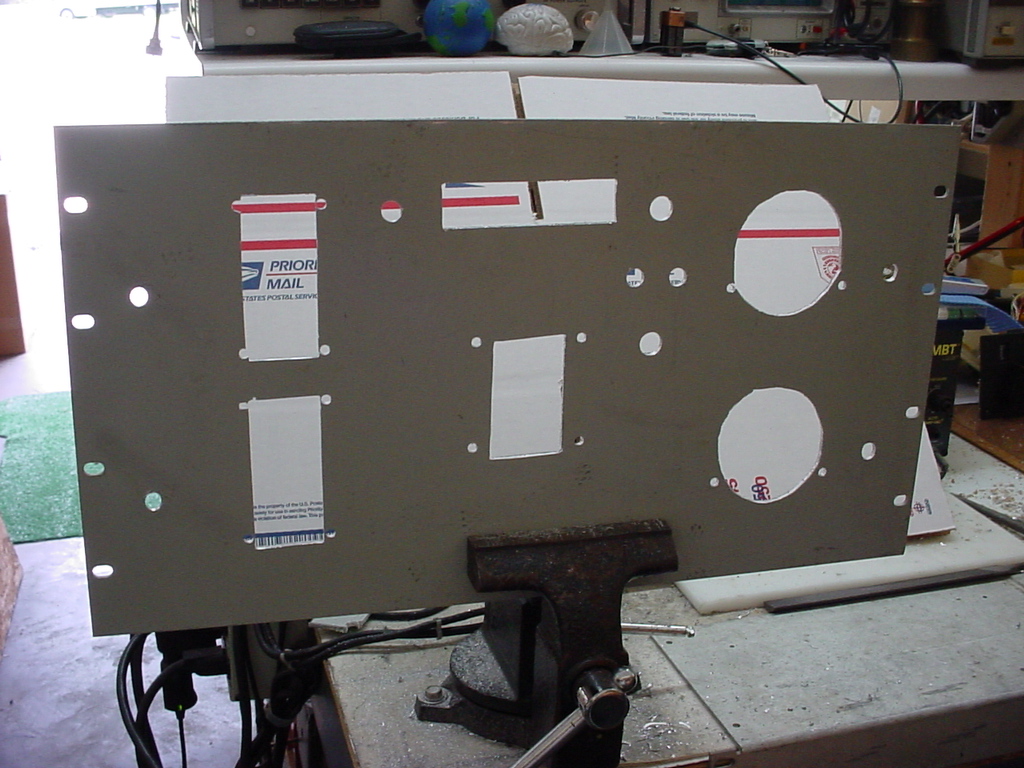

Rough Cut For Meters, Switches and Counters

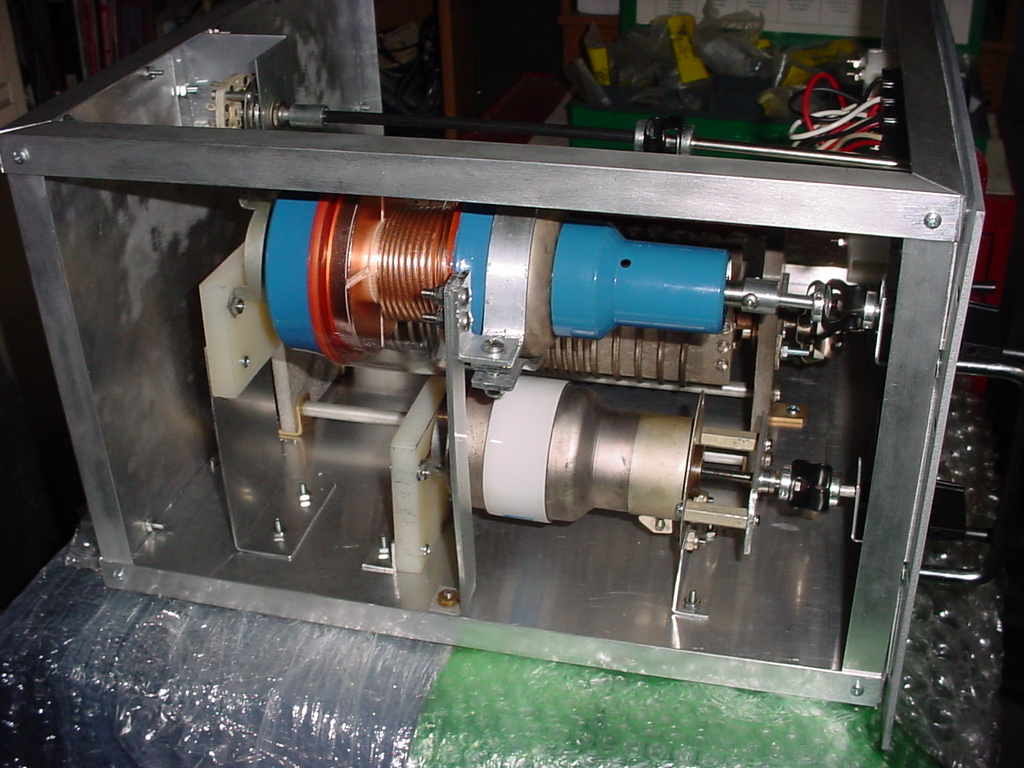

Side View Just After Installing Load and Tune Vacuum Variable Caps

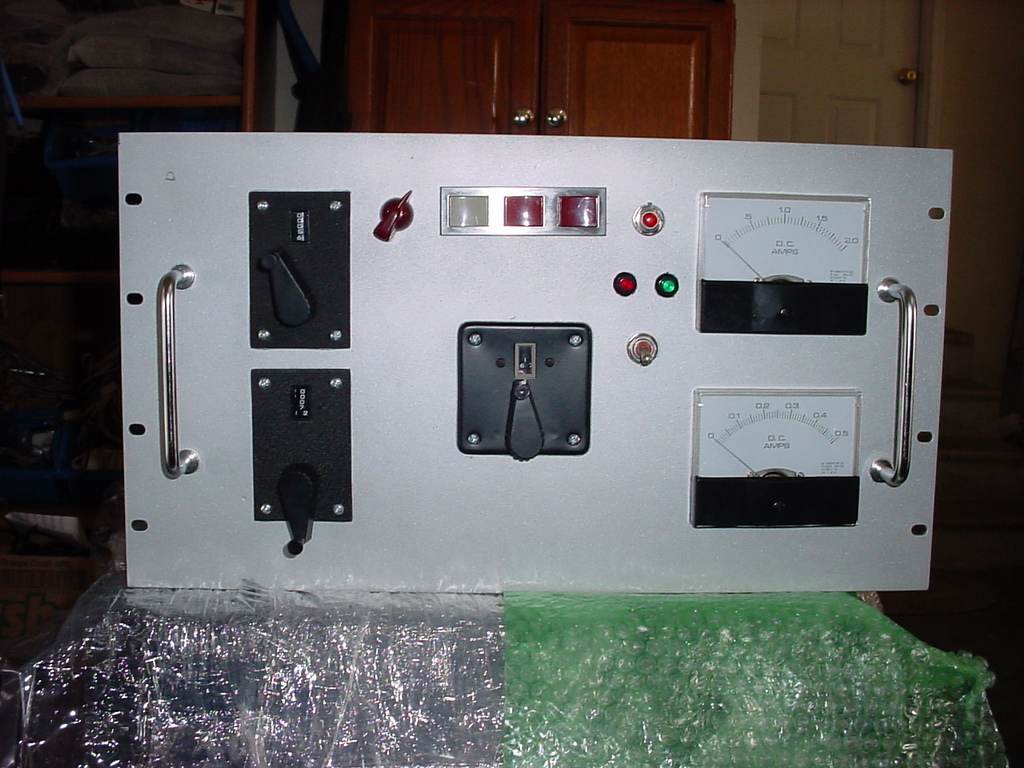

Initial  Fit of all Counters, Switches, Handles  and  Meters

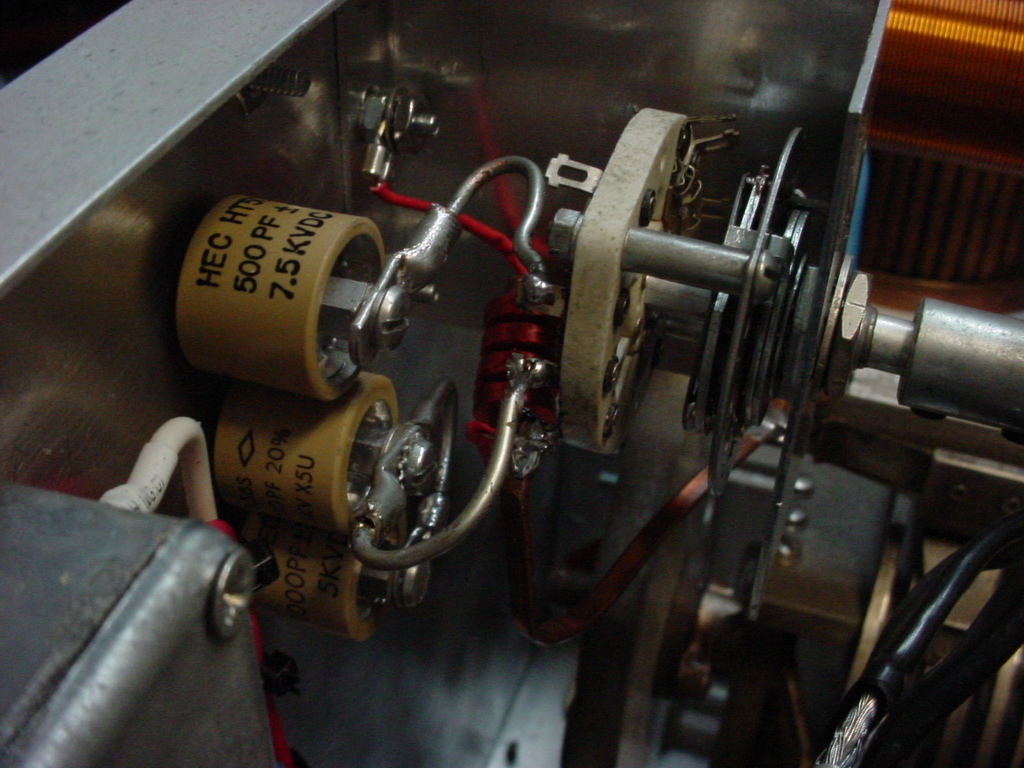

Auxilary Capacitors for Loading and Switch

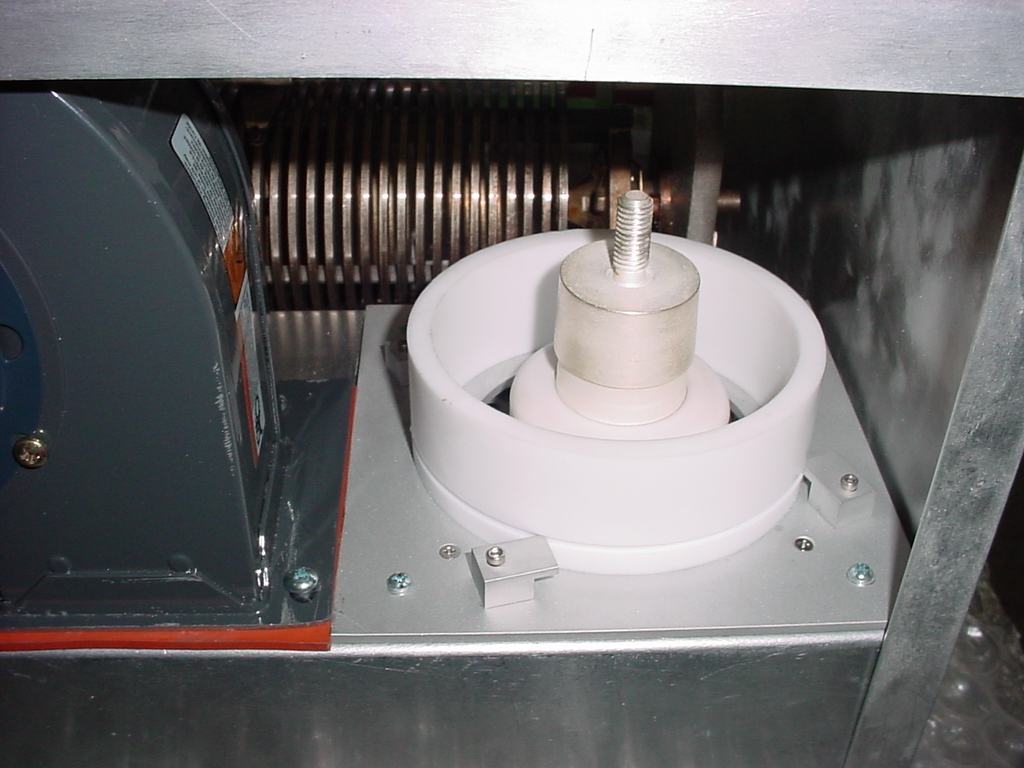

GS-35B Tube without the COOLER !






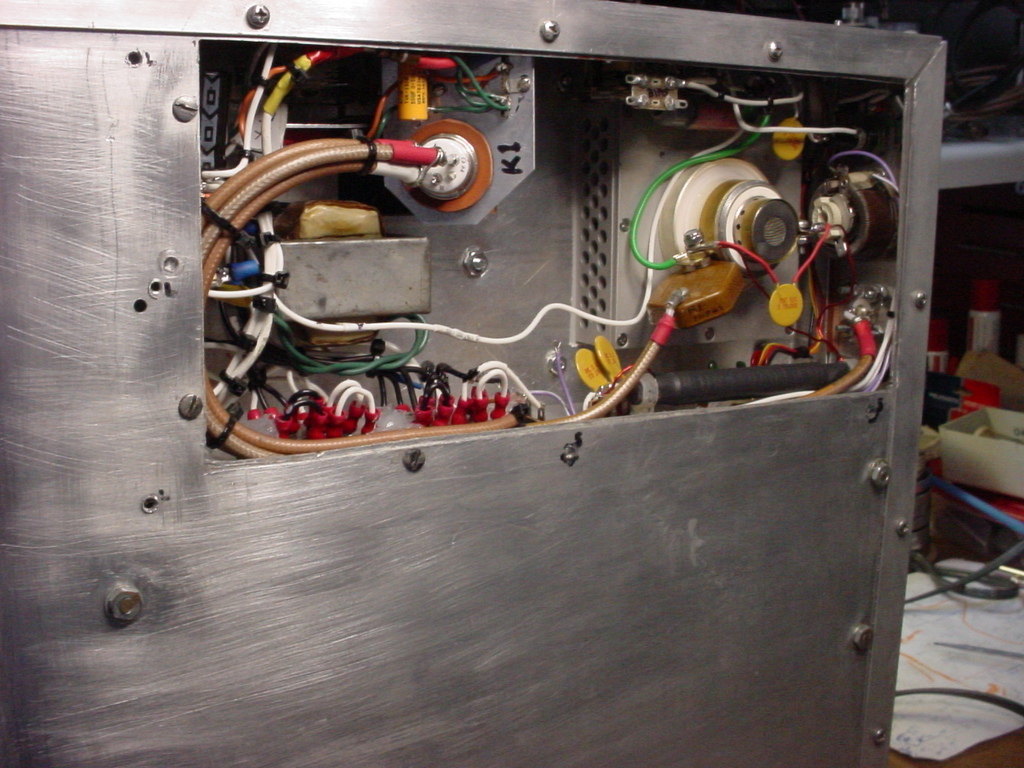

Bottom View of Tube Filament Circuitry

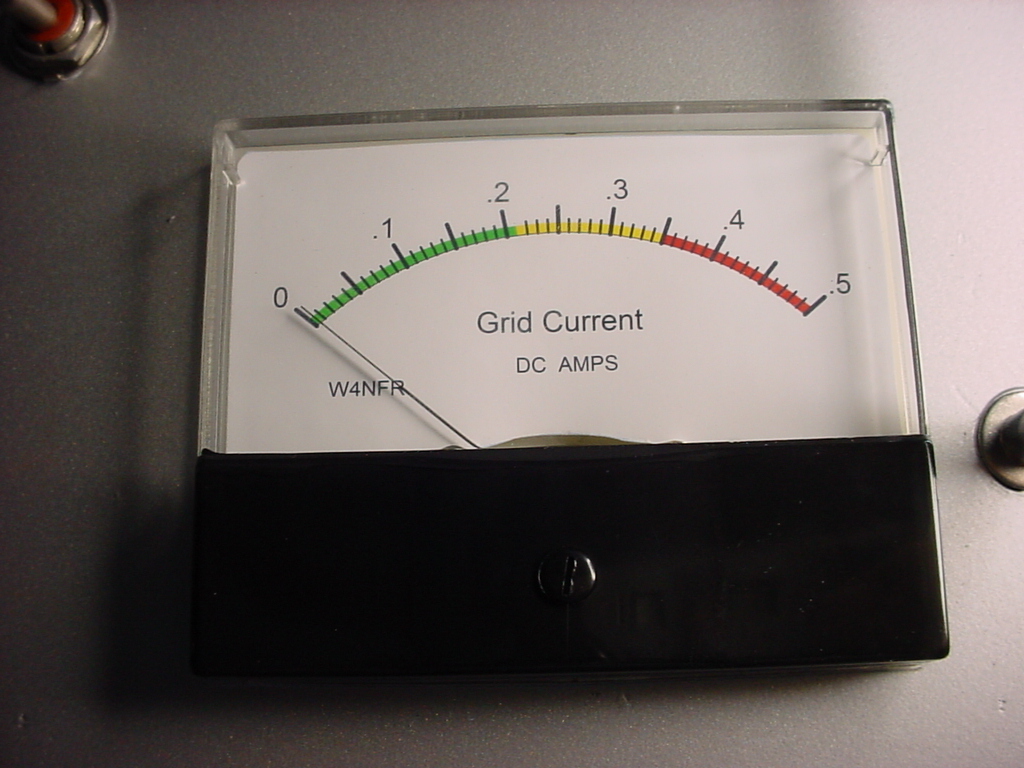

Grid Current Meter

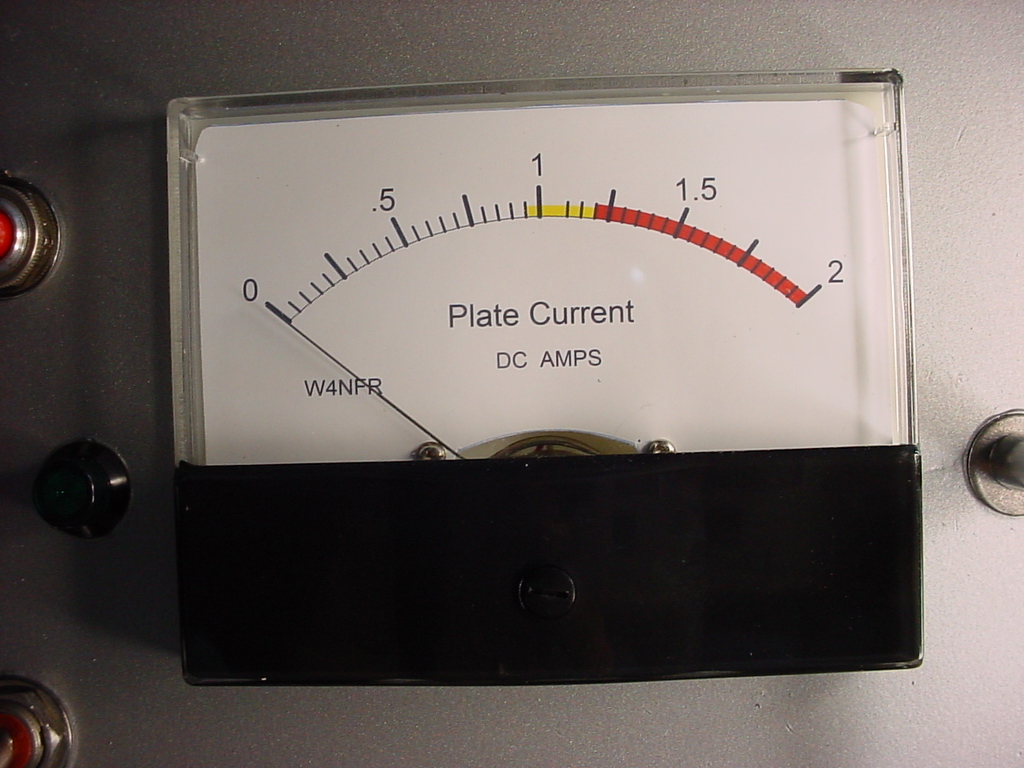

Plate Current Meter

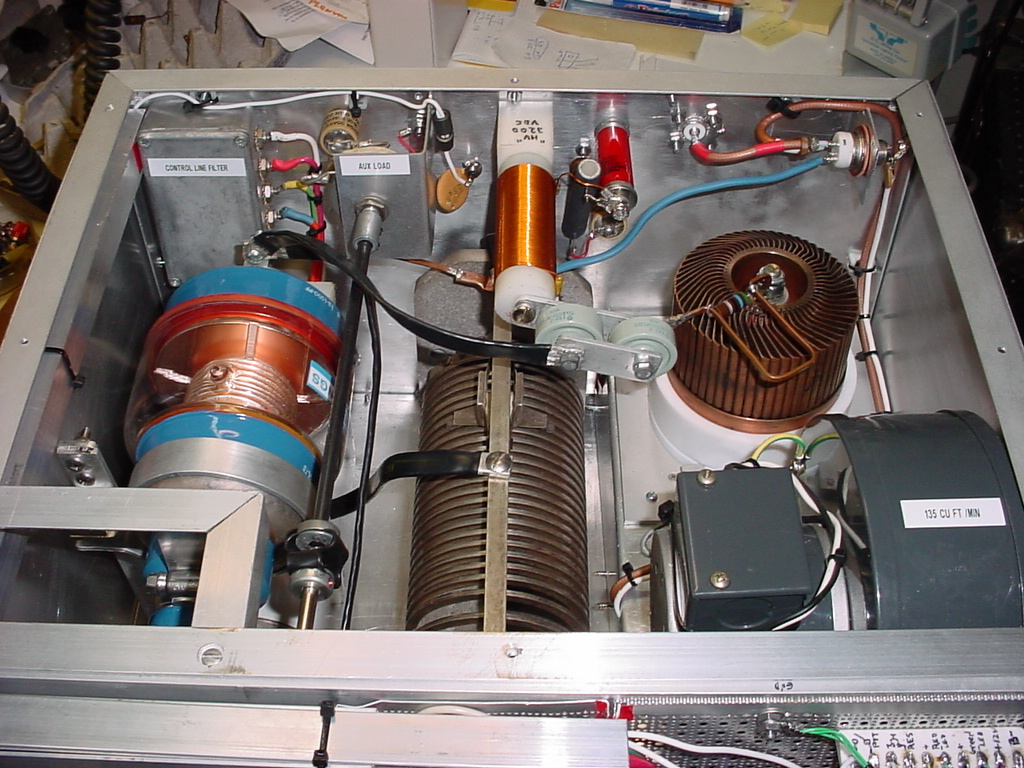

Top View of Amp With Everything in Place





Isotropic View with Top Cover in Place

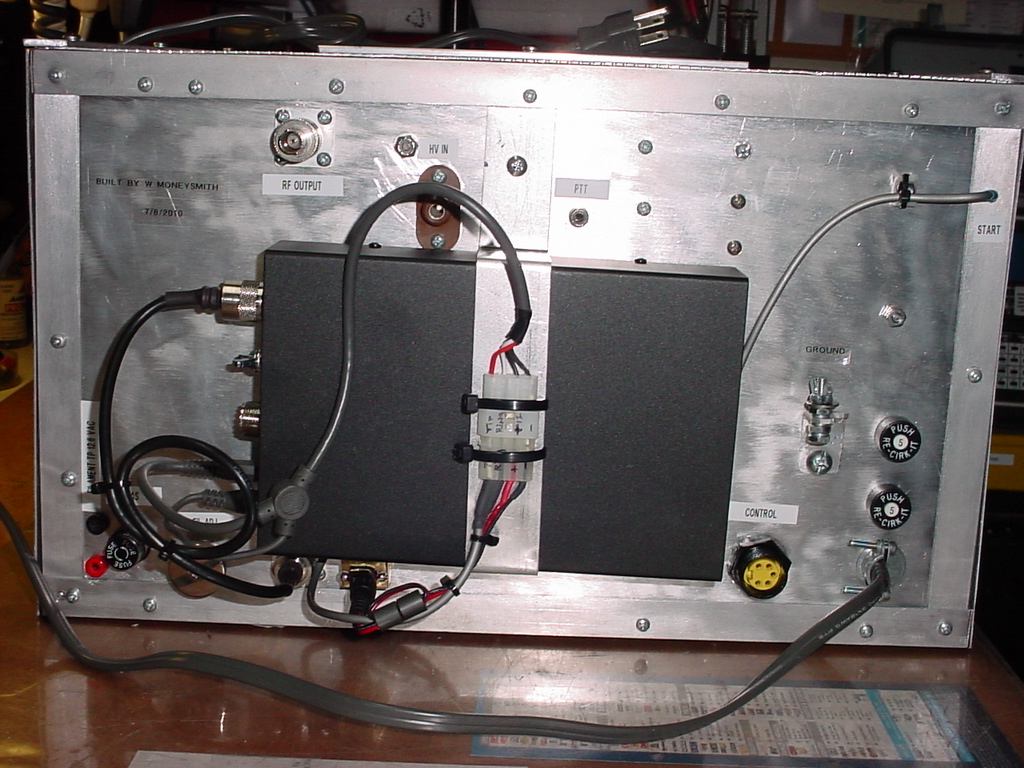

Rear View With Input Tuner mounted on the rear
I chose to move the tuner to the side of Amp for convienience when using it.

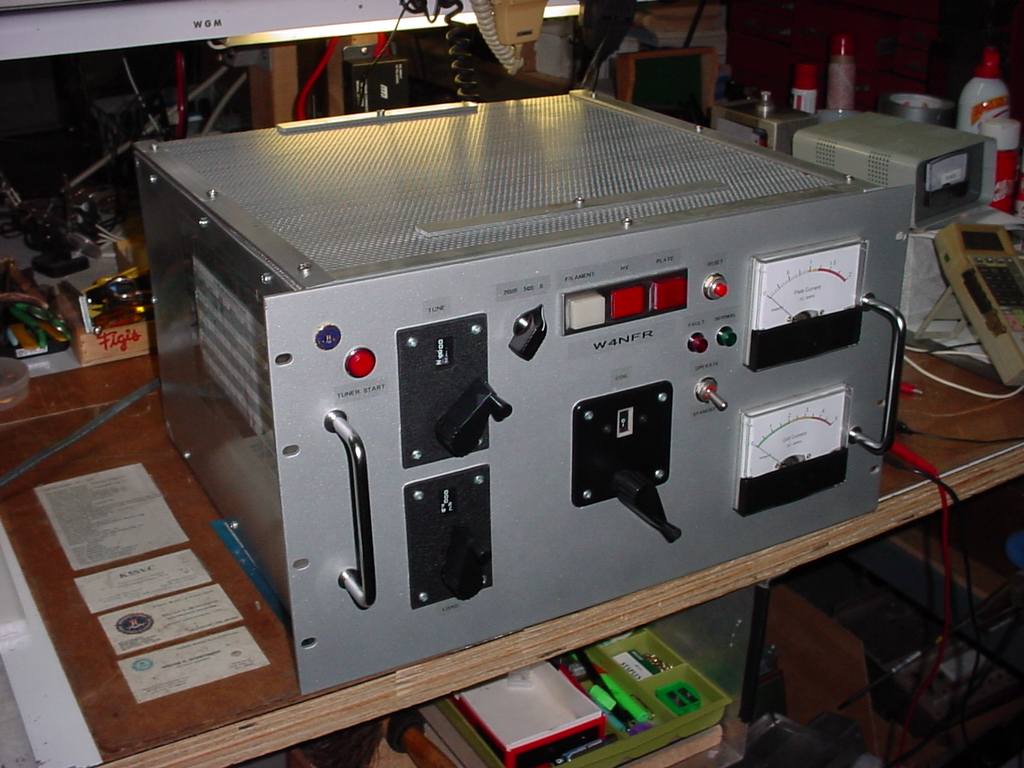

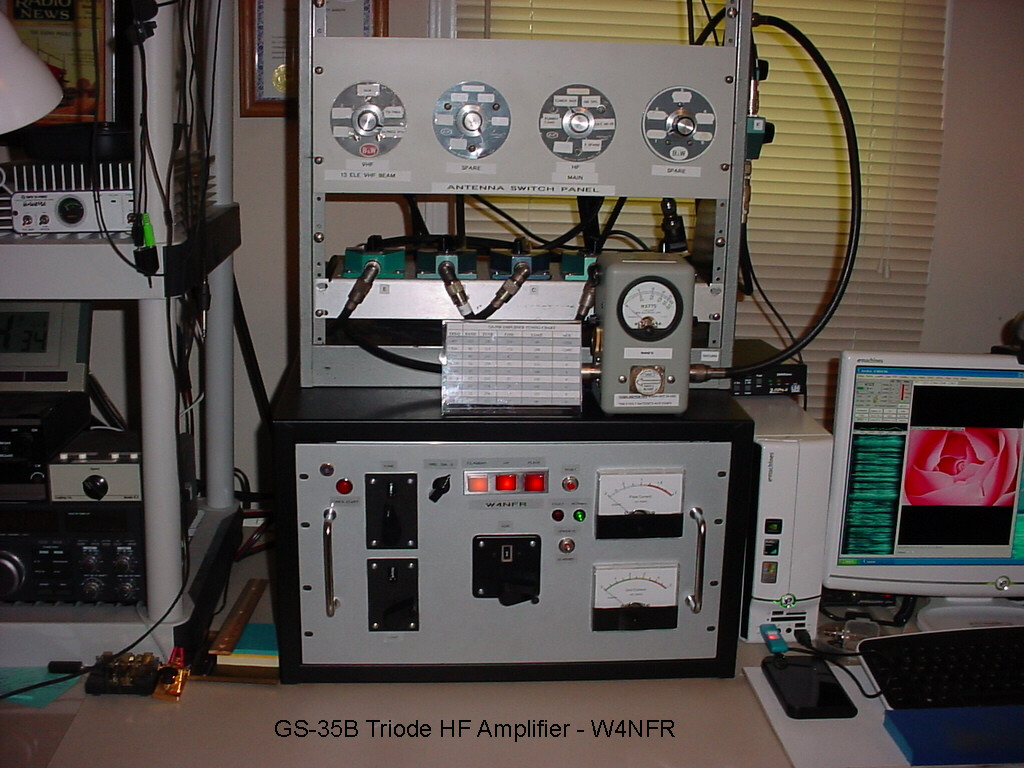

Finished Amplifier in its Cabinet! It has been a wonderful amplifier so far and tunes up nicely.
A real pleasure to use!
73s
Bill W4NFR

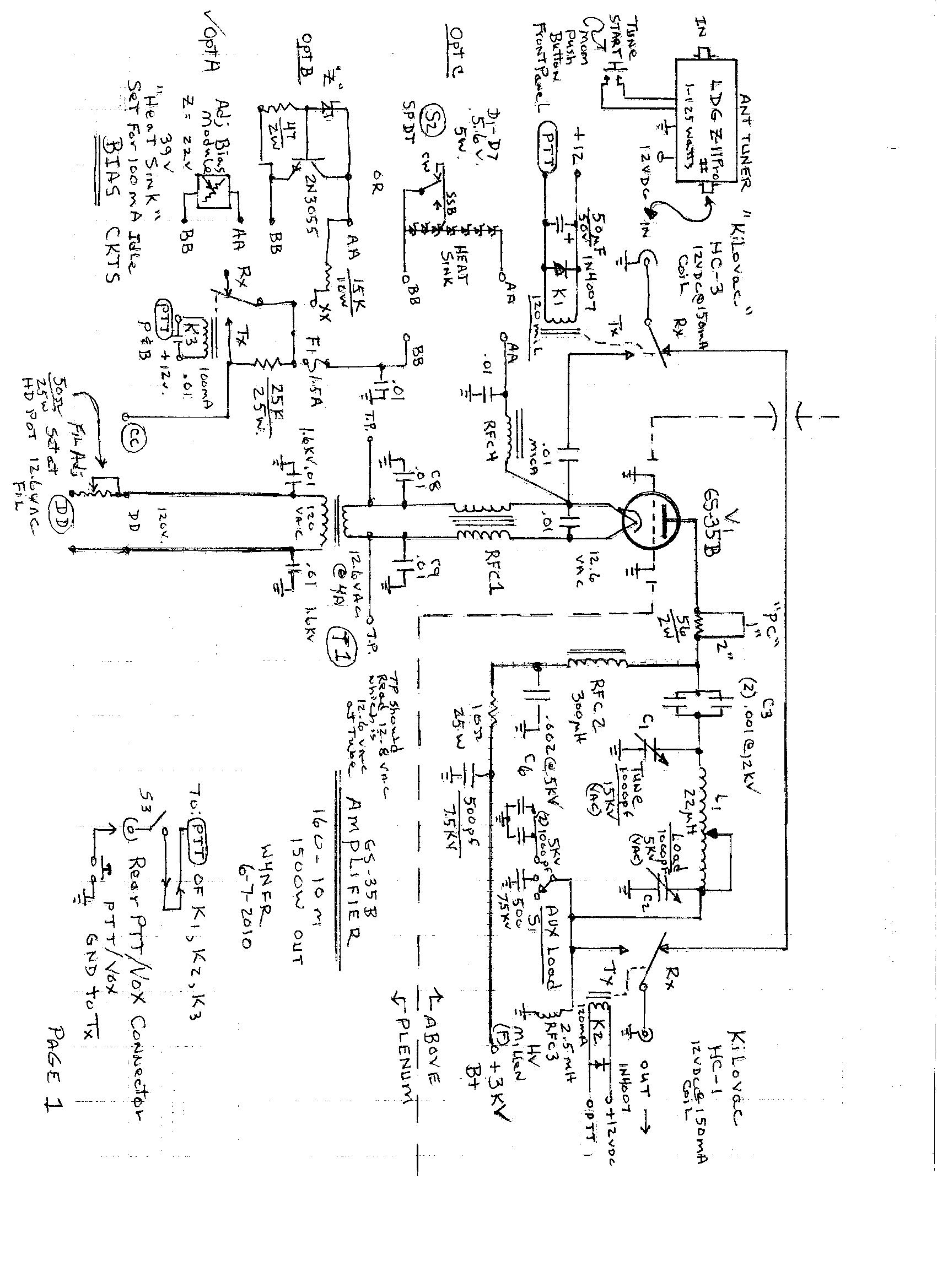

Page 1 Schematic

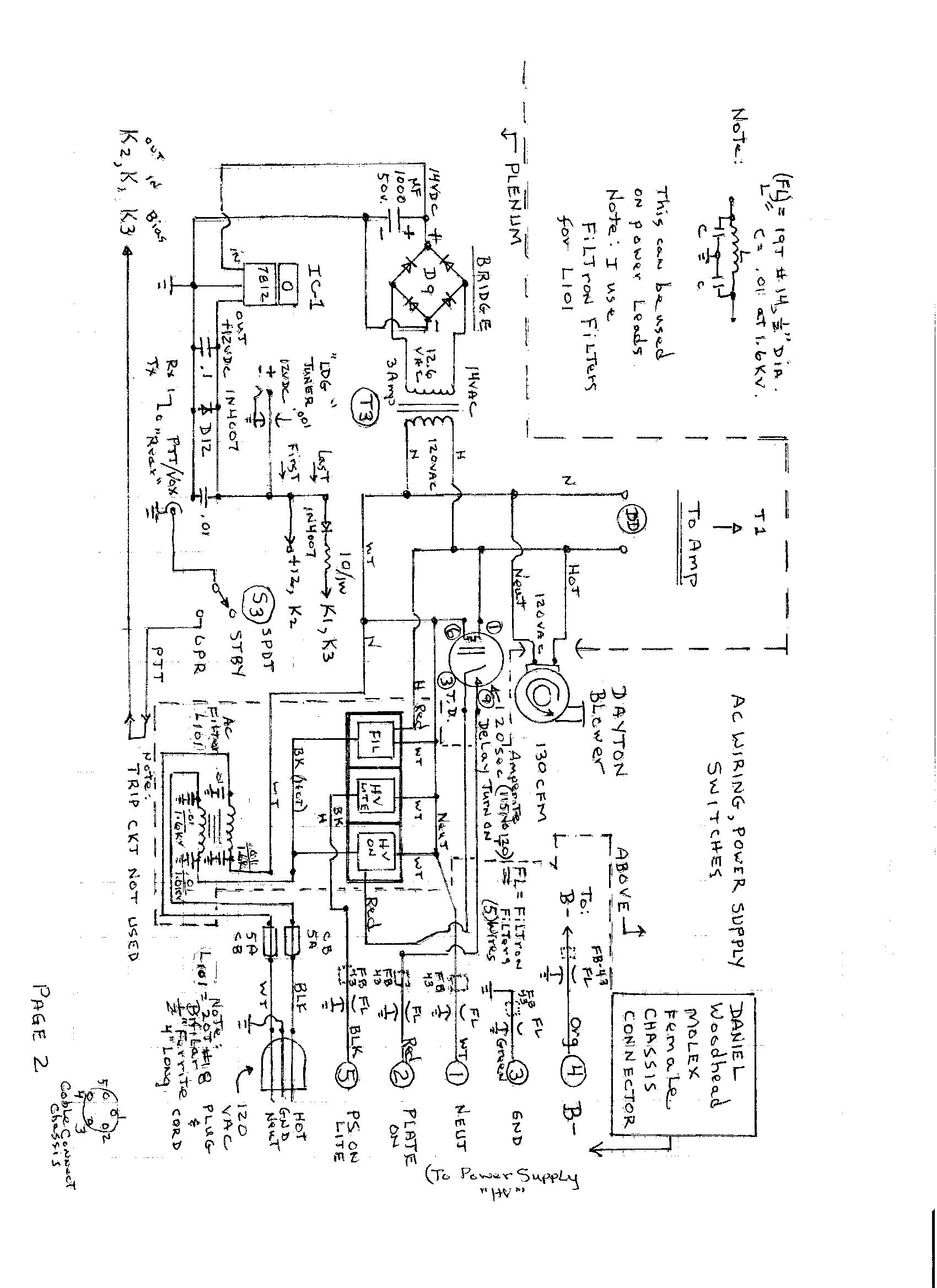

Page 2  Schematic

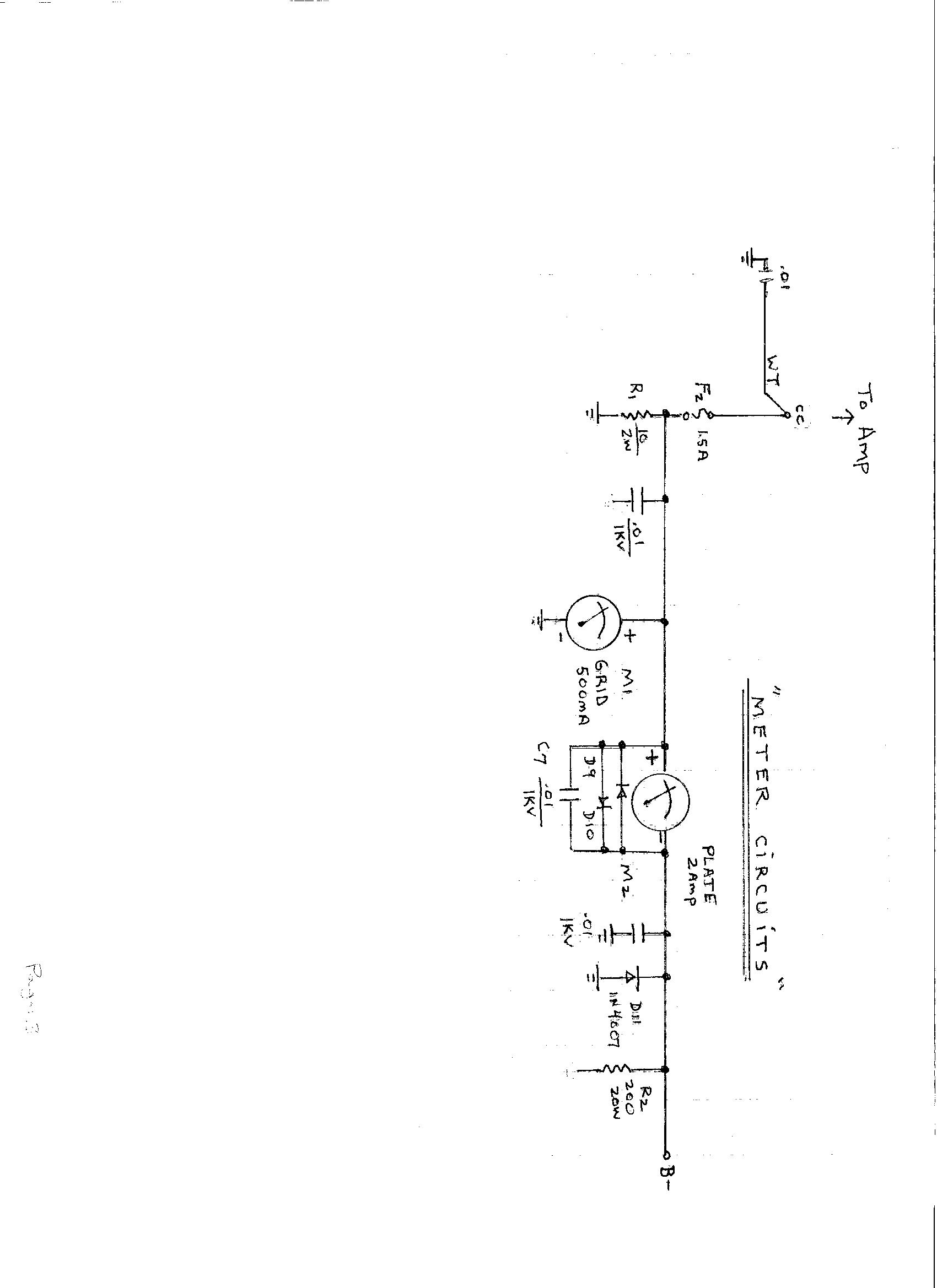

Page 3 Schematic







Page 4 Schematic





Note: The HV PS is the same as the (2) 3-500Z Amplifier.

The End !
73s
W4NFR
